Code 43: WASTEGATE Control Solenoid Valve

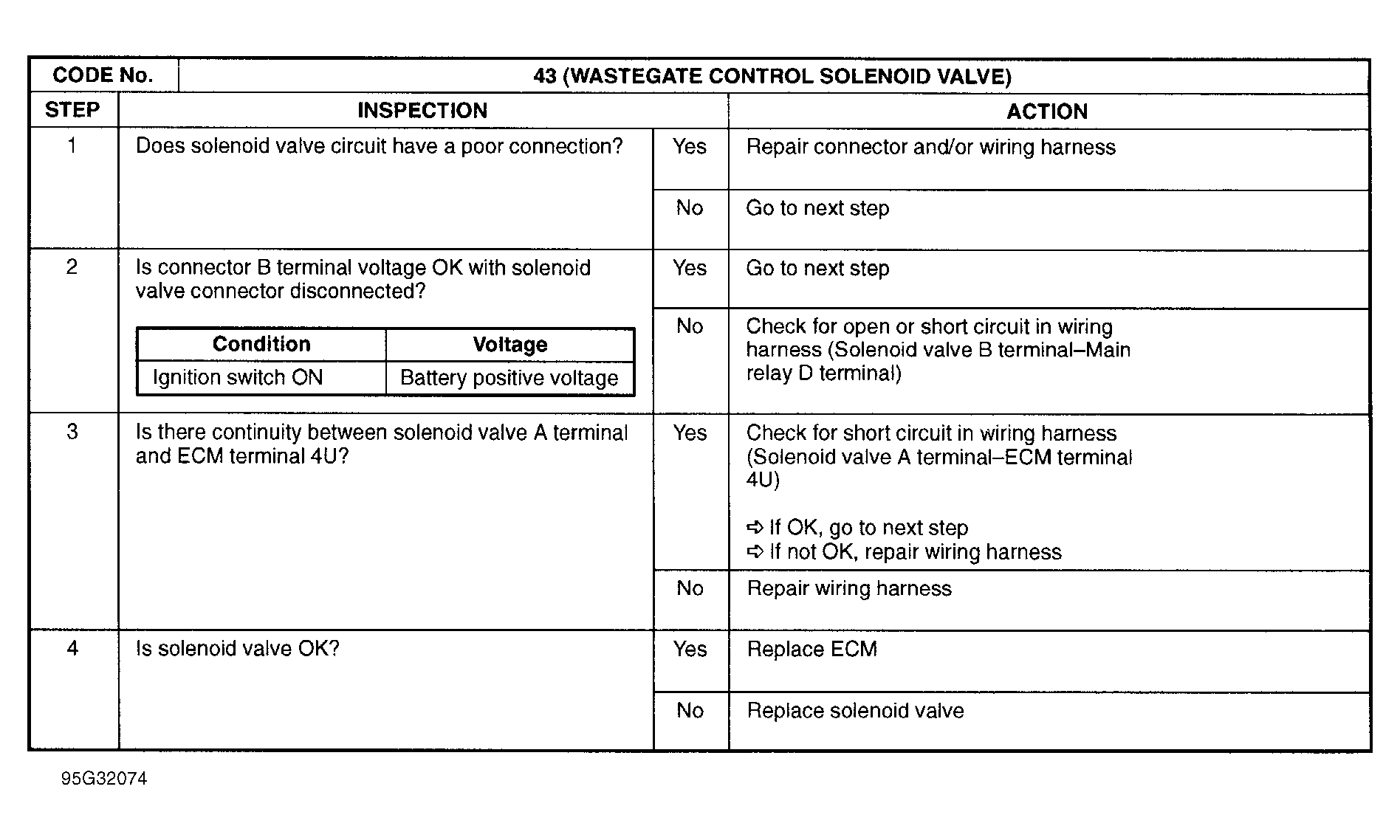

Fig 1: Trouble Code No. 43 Wastegate Control Solenoid Valve

G95G32074

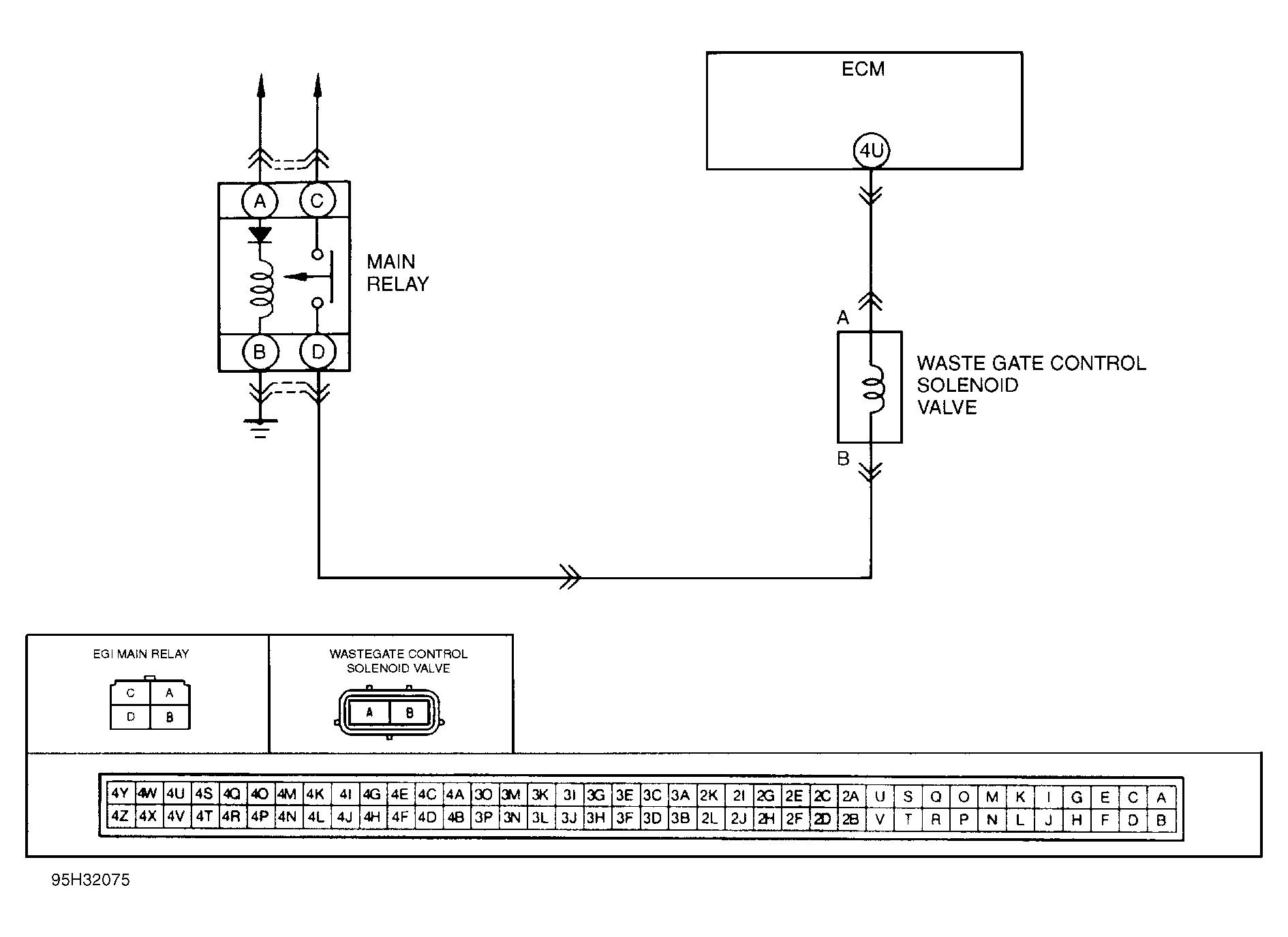

Fig 2: Trouble Code No. 43 Wastegate Control Solenoid Valve Circuit Diagram

G95H32075
