Code 5: Knock Sensor

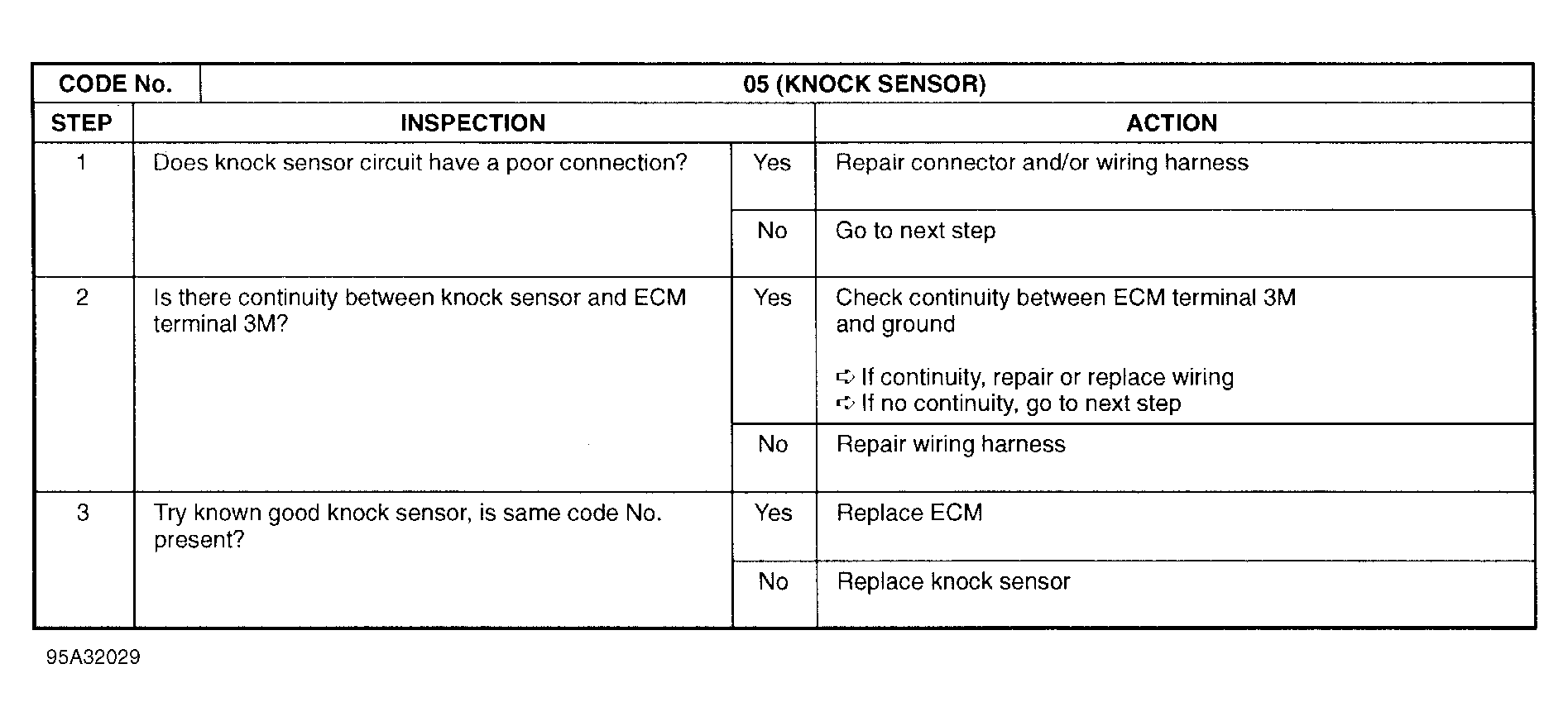

Fig 1: Trouble Code No. 5 Knock Sensor

G95A32029

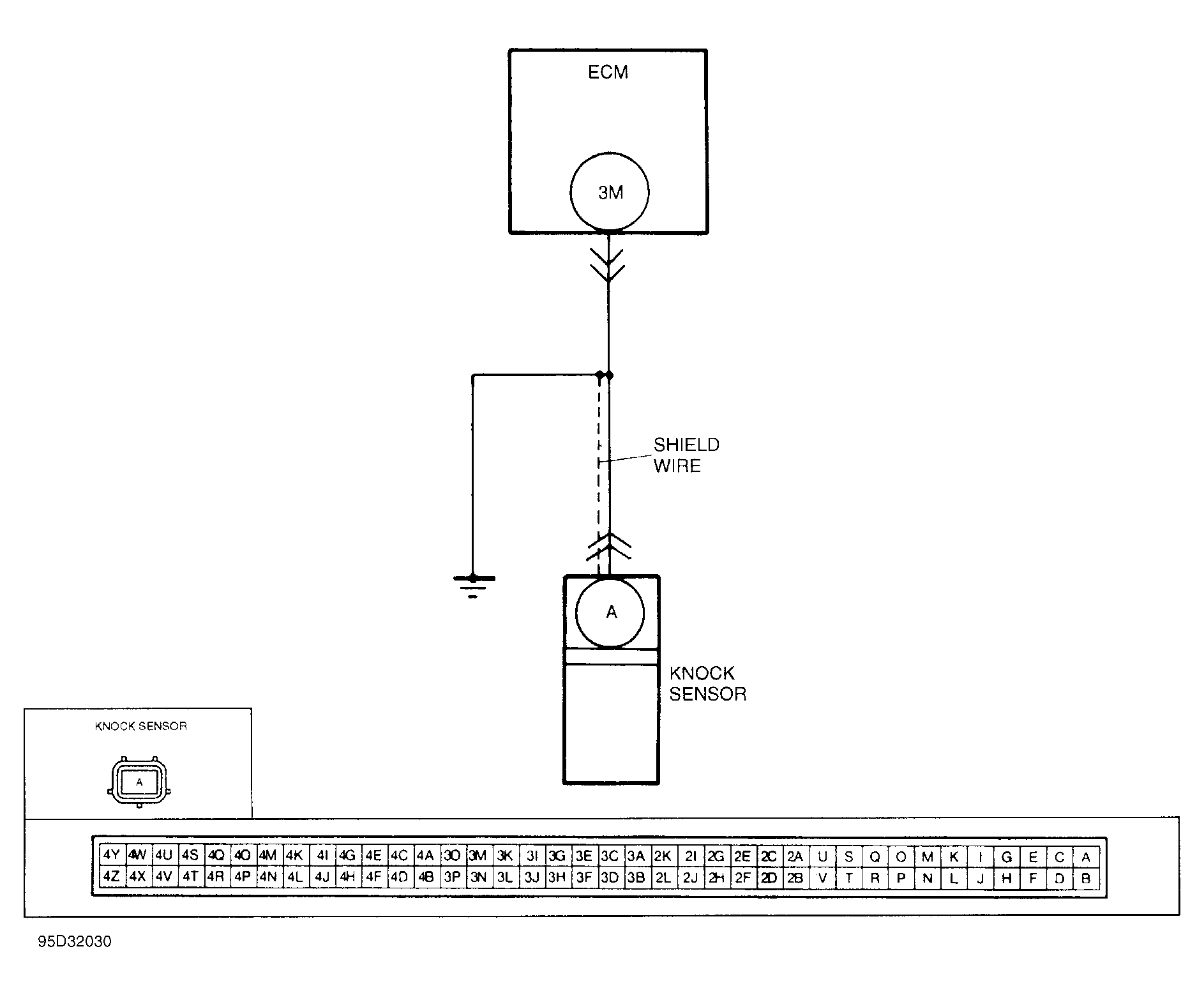

Fig 2: Trouble Code No. 5 Knock Sensor Circuit Diagram

G95D32030
