Code 9: Engine Coolant Temperature Sensor

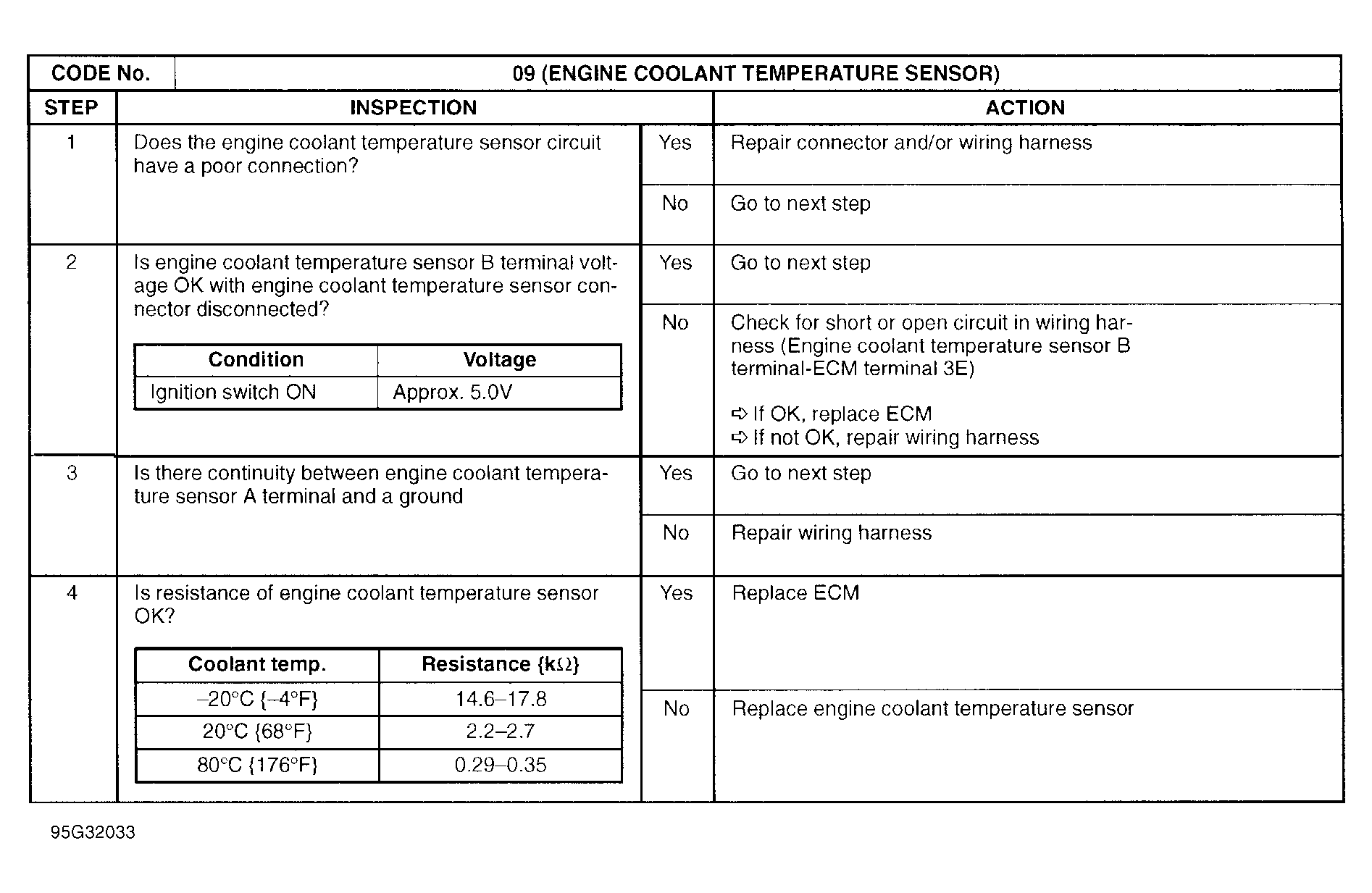

Fig 1: Trouble Code No. 9 Engine Coolant Temperature Sensor

G95G32033

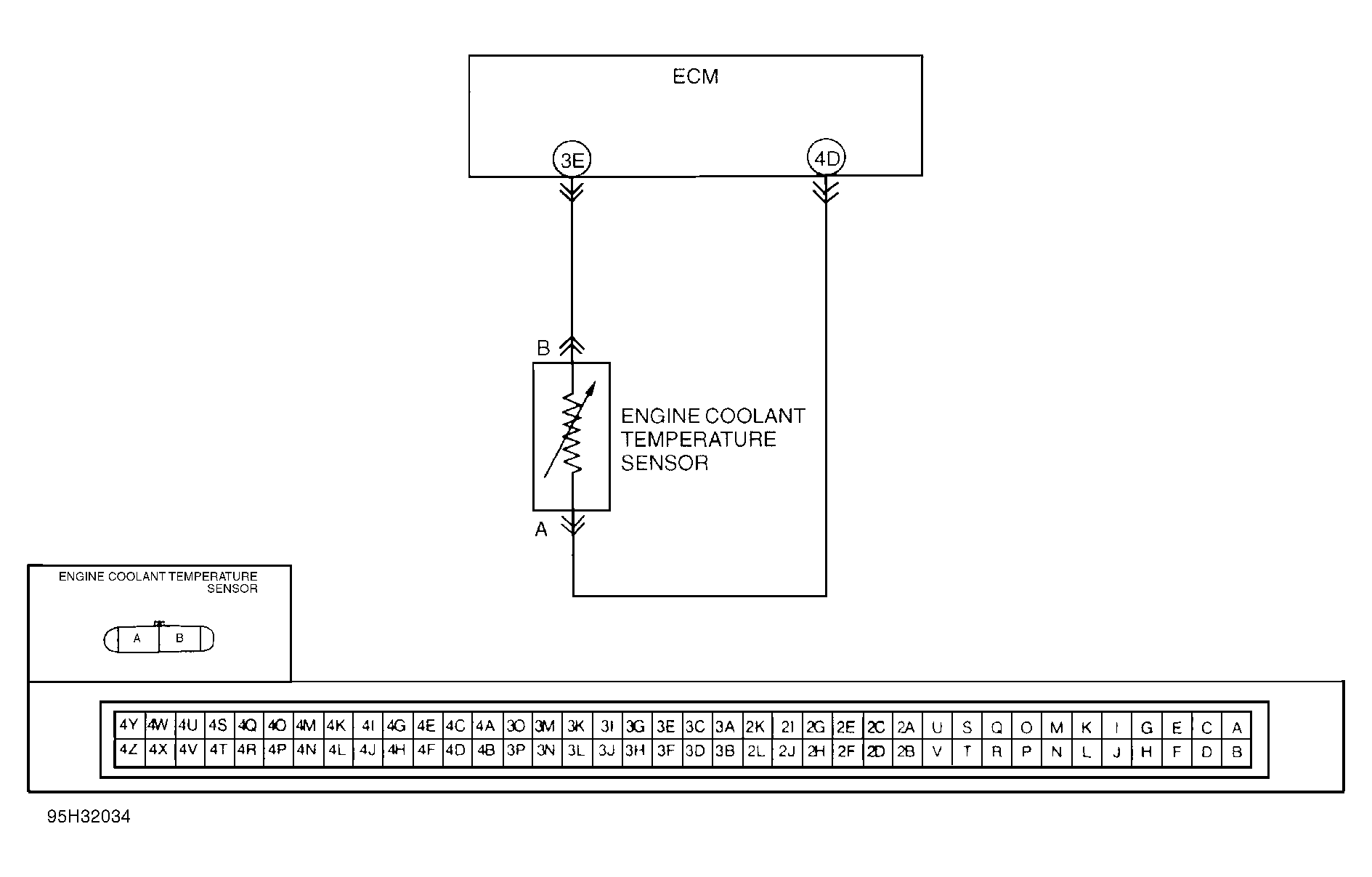

Fig 2: Trouble Code No. 9 Engine Coolant Temperature Sensor Circuit Diagram

G95H32034
