Magnetic Switch

Inspect for continuity between terminals (S) and (M) using an ohmmeter. If there is no continuity, replace the magnetic switch. See Fig 1 .
Inspect for continuity between terminal (S) and the body using an ohmmeter. If there is no continuity, replace the magnetic switch. See Fig 2 .
Verify that there is no continuity between terminals (M) and (B) using an ohmmeter. If there is continuity, replace the magnetic switch. See Fig 3 .

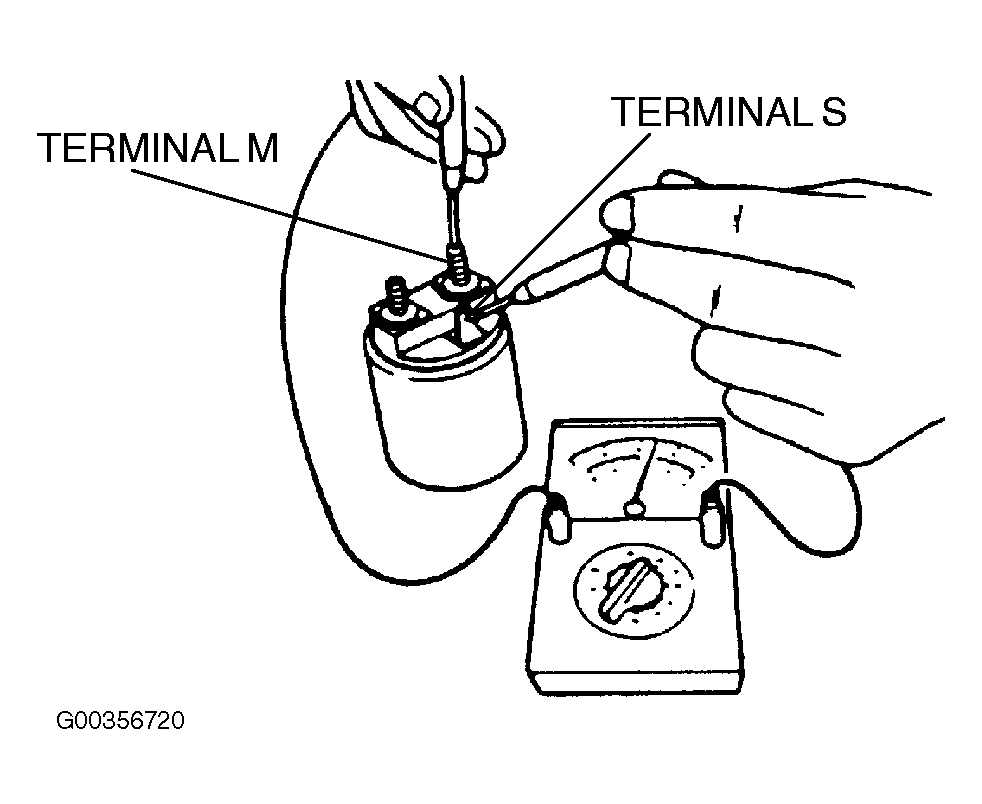

Fig 1: Inspecting For Continuity (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

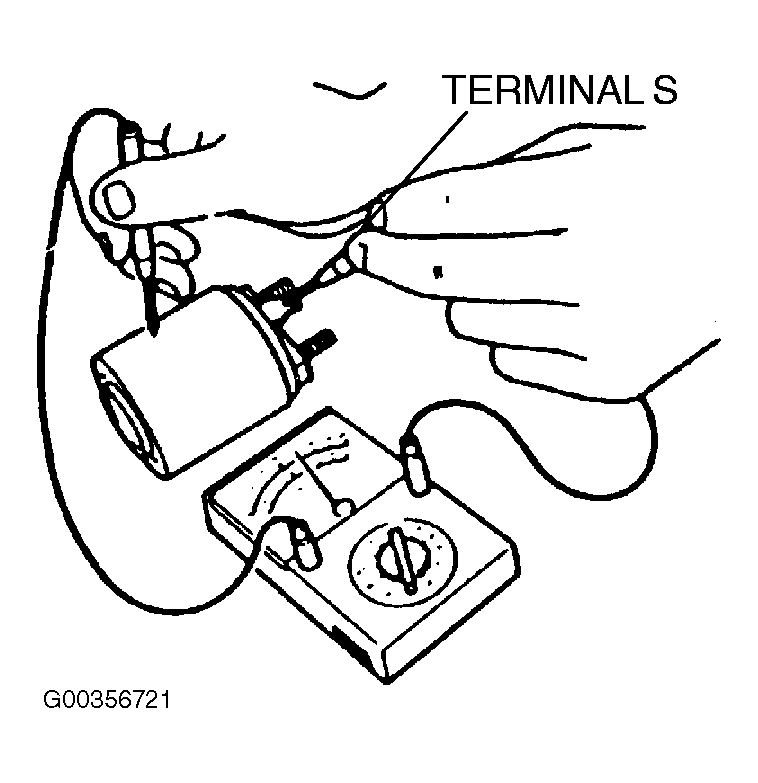

Fig 2: Inspecting For Continuity (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

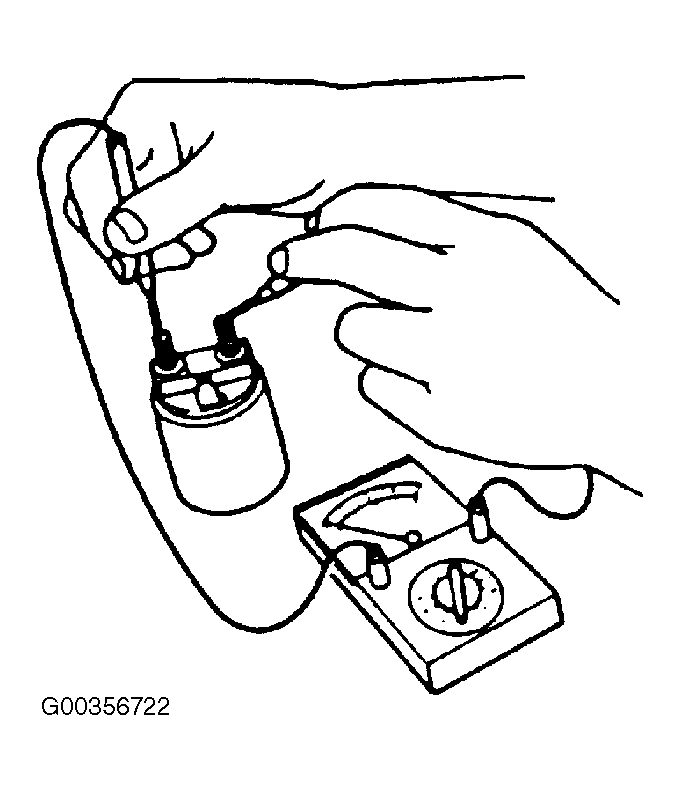

Fig 3: Inspecting For Continuity (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
