Powertrain Control Module Location & Connectors Terminals Identification

PCM is located above brake pedal. For PCM location and connector terminals identification. See Fig 1 and Fig 2 .

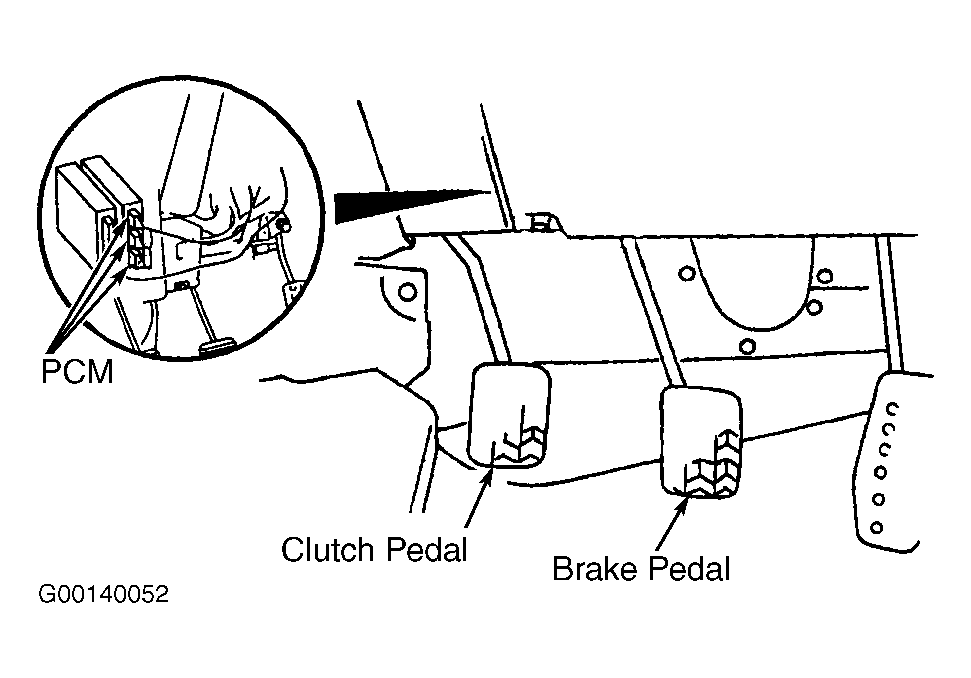

Fig 1: Locating Powertrain Control Module

Courtesy of MAZDA MOTORS CORP.

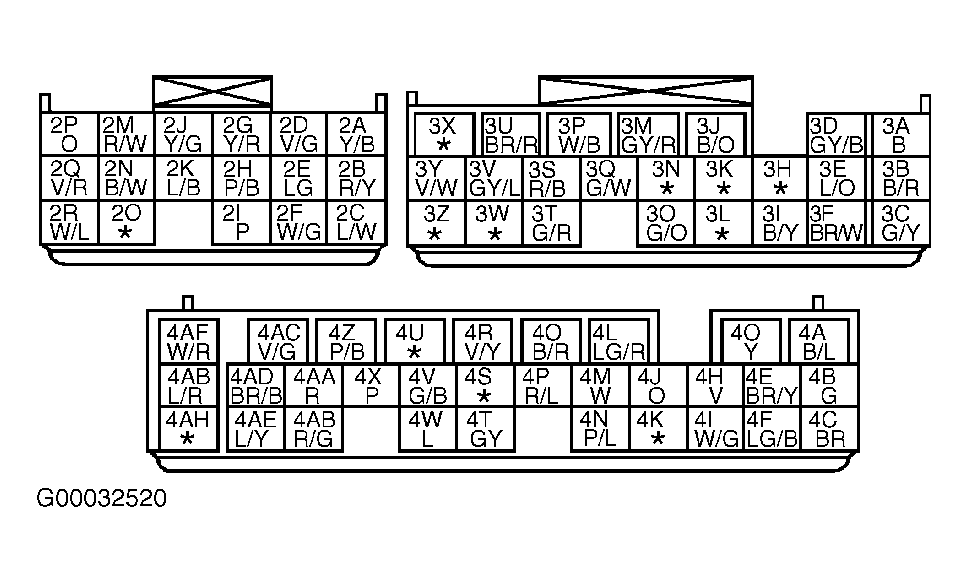

Fig 2: Identifying Powertrain Control Module Harness Connector Terminals

Courtesy of MAZDA MOTORS CORP.
