TCS Off Switch Inspection

  1. Remove the TCS OFF switch.
  2. Inspect for continuity between the TCS OFF switch terminals using an ohmmeter.
    • If not within the specification, replace the TCS OFF switch.

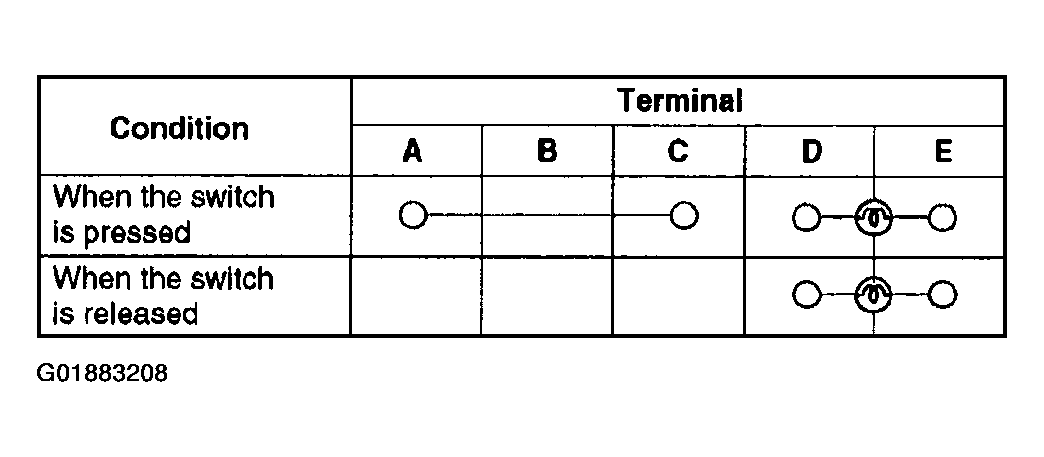

      Fig 1: Inspecting TCS Off Switch (1 Of 2)
      G01883208Courtesy of MAZDA MOTORS CORP.

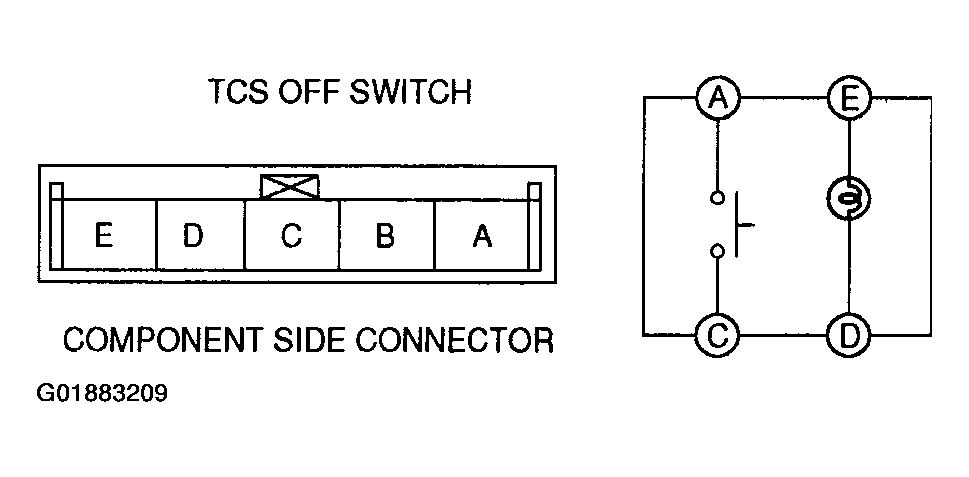

      Fig 2: Inspecting TCS Off Switch (2 Of 2)
      G01883209Courtesy of MAZDA MOTORS CORP.
