Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

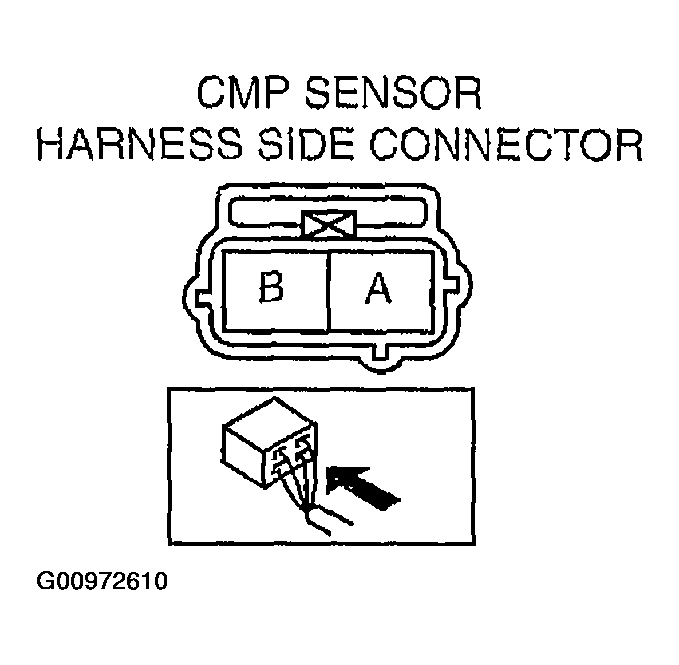

    Fig 1: Identifying Camshaft Position Sensor Connector Terminals
    G00972610Courtesy of MAZDA MOTORS CORP.
