Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following harness for an open or short wiring. (Continuity inspection)

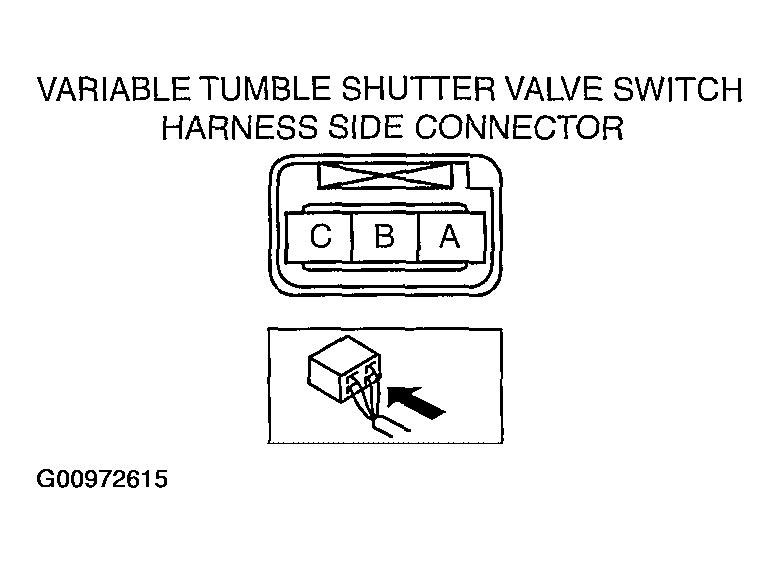

    Fig 1: Identifying Variable Tumble Shutter Valve Switch Harness Side Connector Terminals
    G00972615Courtesy of MAZDA MOTORS CORP.
