Fuel Tank Support Straps Removal/Installation

  1. Raise the vehicle.
  2. Remove the four bolts (two each side) and remove the skid plate, if equipped.

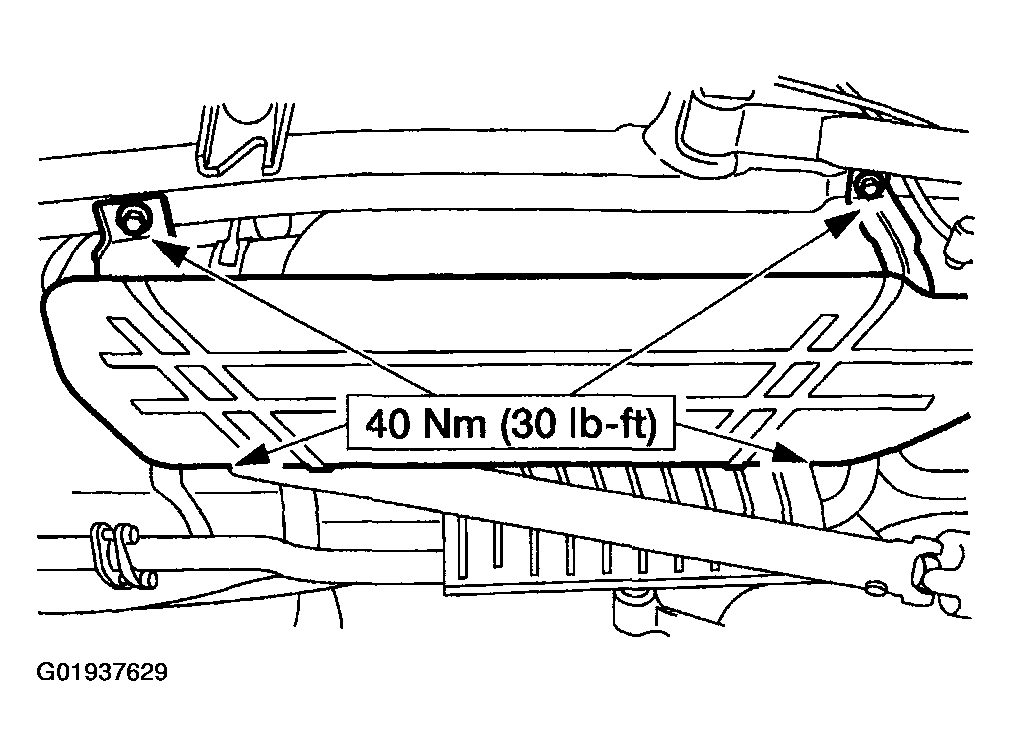

    Fig 1: Removing Skid Plate Bolts
    G01937629Courtesy of MAZDA MOTORS CORP.
  3. Support the fuel tank.
  4. Remove the fuel tank support straps.
    • Remove the bolts.
    • Remove the support straps.

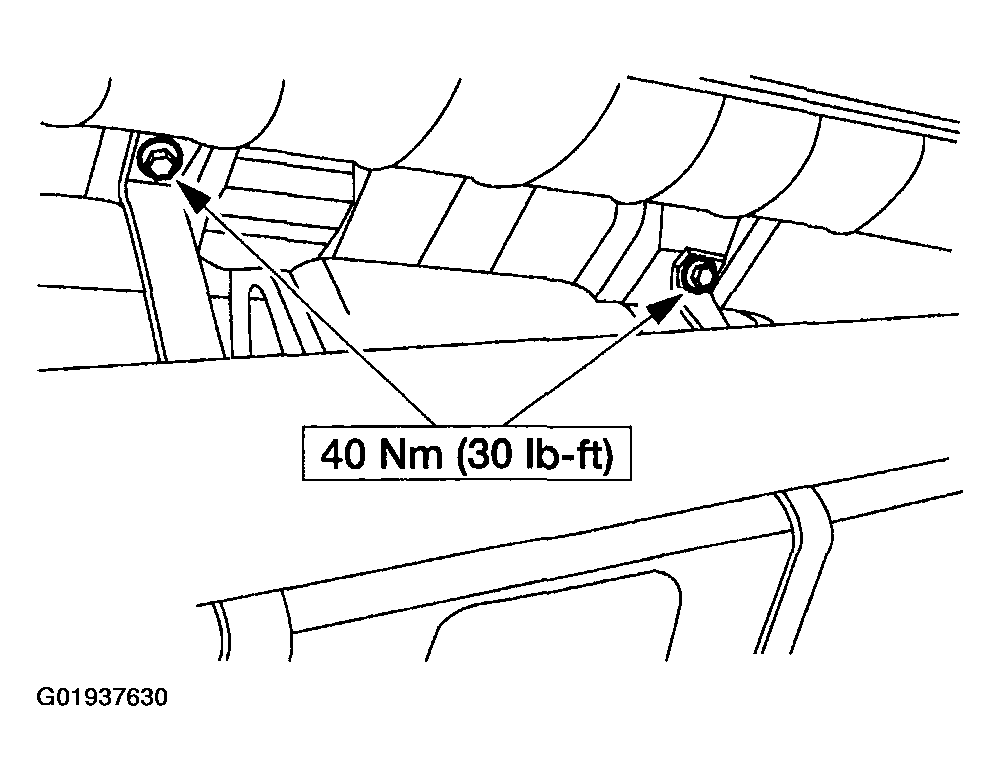

    Fig 2: Installing Skid Plate Bolts
    G01937630Courtesy of MAZDA MOTORS CORP.
  5. To install, reverse the removal procedure.
