Disconnect Note

Relieve the fuel pressure. See FUEL PRESSURE RELIEF .

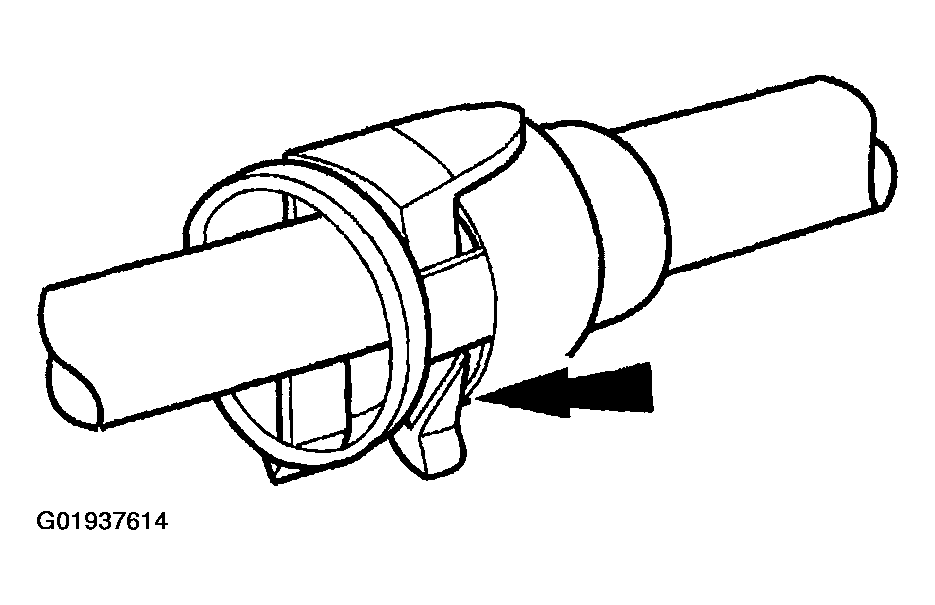

Remove the shipping tab by bending downward.

Fig 1: Removing Shipping Tab By Bending Downward
Courtesy of MAZDA MOTORS CORP.

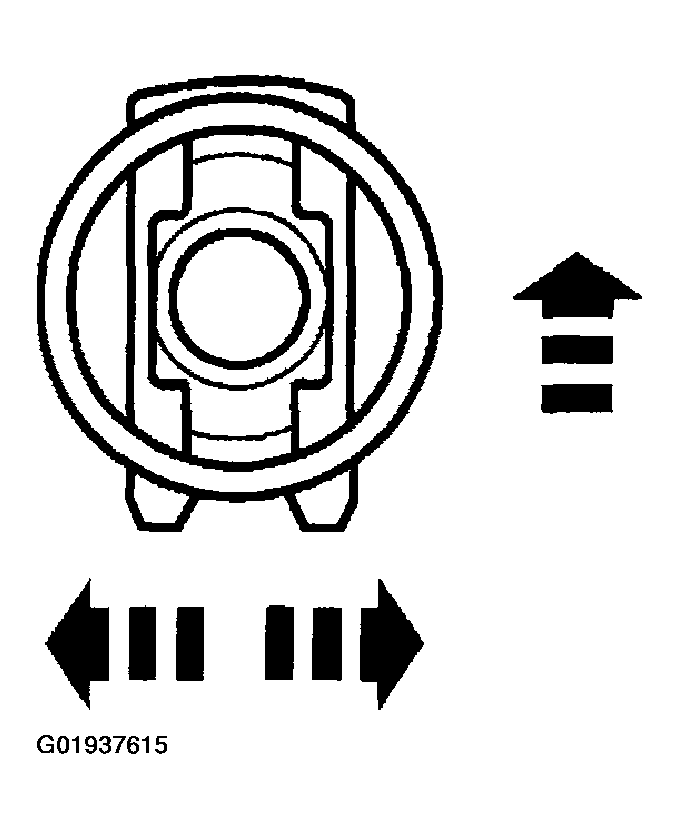

Spread the R-clip legs and push the clip into the fitting.

Fig 2: Spreading R-Clip Legs And Pushing Clip Into Fitting
Courtesy of MAZDA MOTORS CORP.

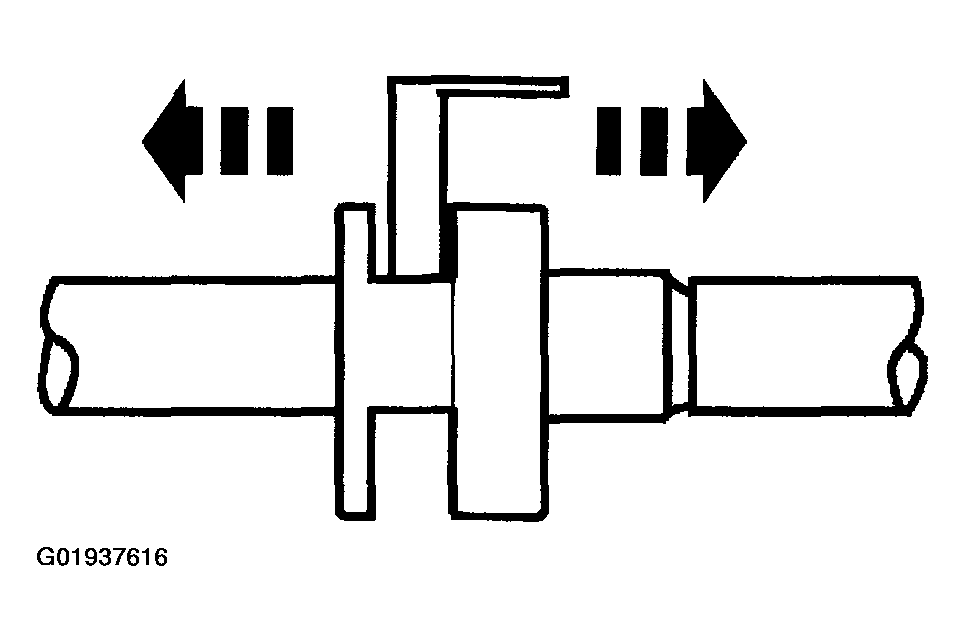

Separate the fitting from the tube.

Fig 3: Separating Fitting From Tube
Courtesy of MAZDA MOTORS CORP.
