MISFIRE FREEZE-FRAME PIDs
MISFIRE FREEZE-FRAME PIDs

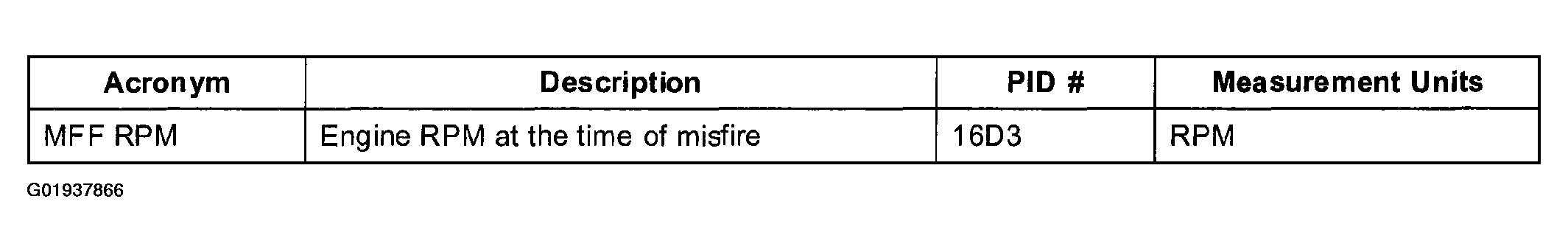

Fig 1: Misfire Freeze-Frame PIDs (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

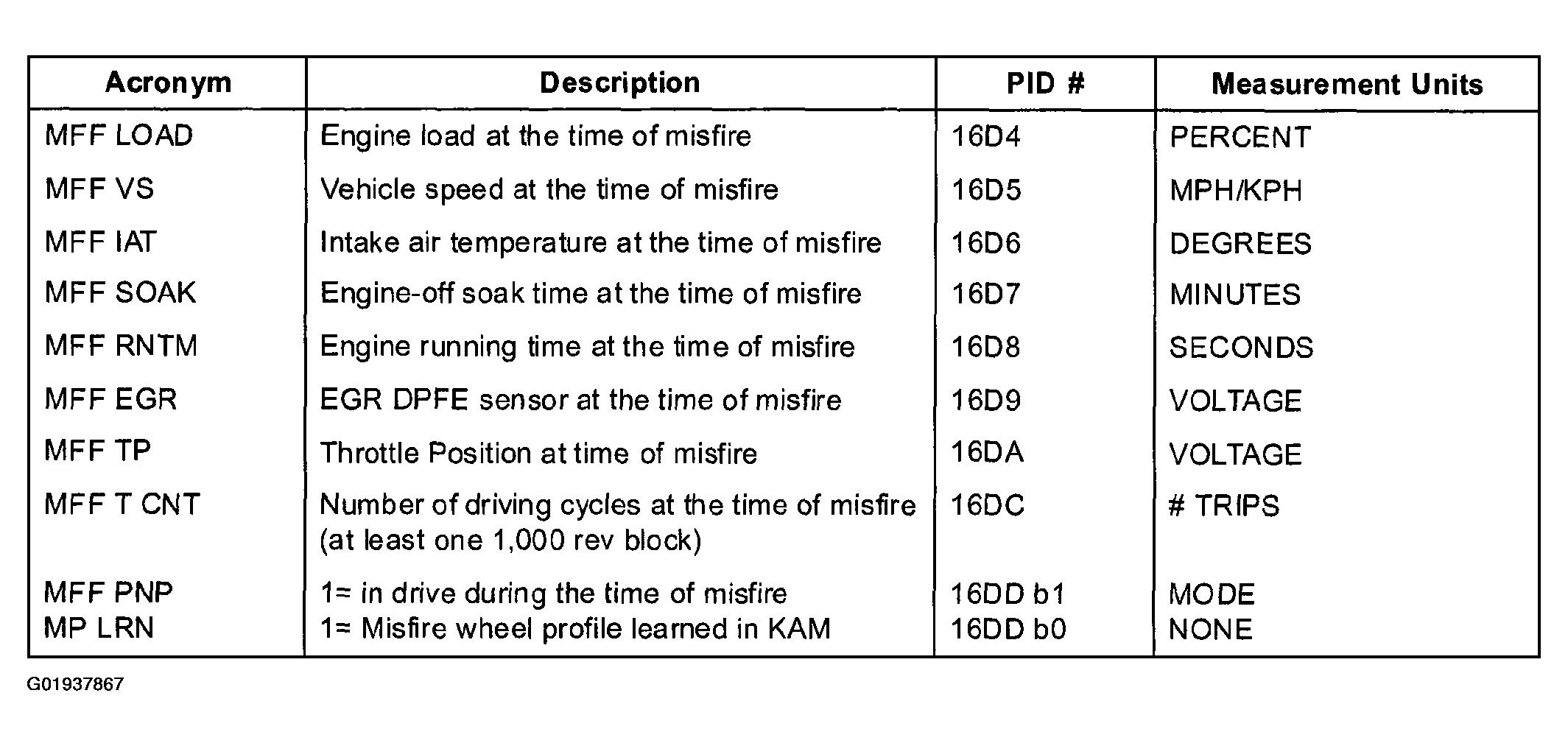

Fig 2: Misfire Freeze-Frame PIDs (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
