Ignition Coil Bracket Removal/Installation

  1. Remove the ignition coil from the bracket. See IGNITION COIL PACK REMOVAL/INSTALLATION - 3.0L .
  2. Remove the nut.

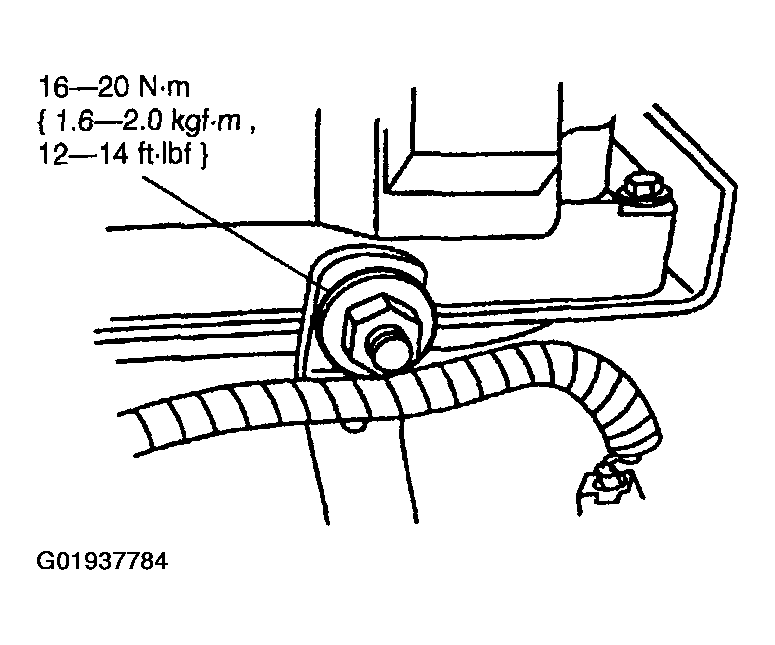

    Fig 1: Removing Ignition Coil Bracket Nut
    G01937784Courtesy of MAZDA MOTORS CORP.
  3. Remove the nut and position the EGR vacuum regulator solenoid out of the way.

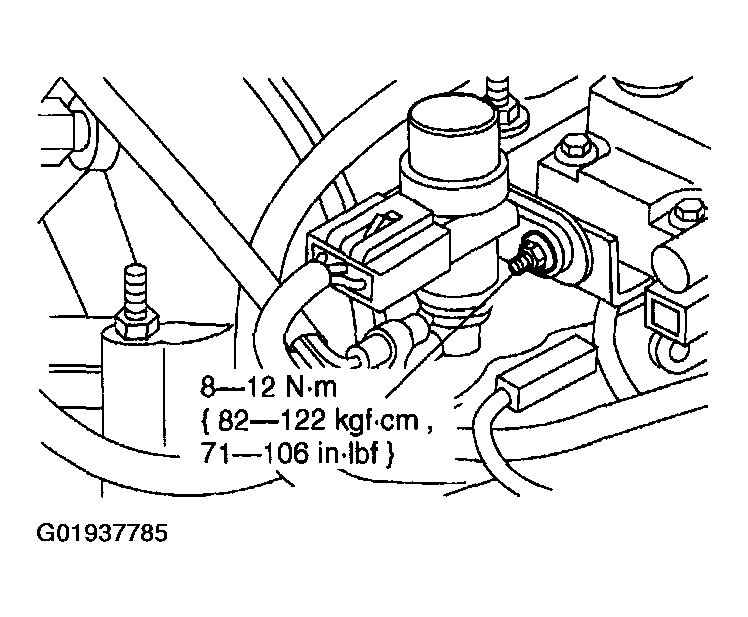

    Fig 2: Removing Nut And Position EGR Vacuum Regulator Solenoid Out Of Way
    G01937785Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts and remove the ignition coil mounting bracket from the upper intake manifold.

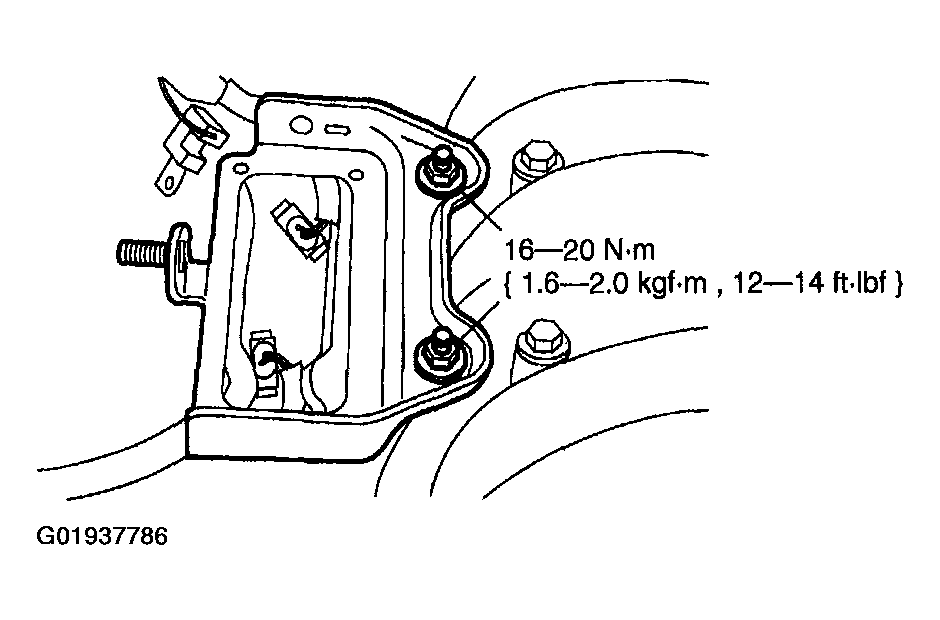

    Fig 3: Removing Ignition Coil Mounting Bracket From Upper Intake Manifold
    G01937786Courtesy of MAZDA MOTORS CORP.
  5. Install in reverse order of removal.
