Swirl Control Solenoid Removal/Installation - 2.3L

  1. Disconnect the negative battery cable. See BATTERY DISCONNECT .

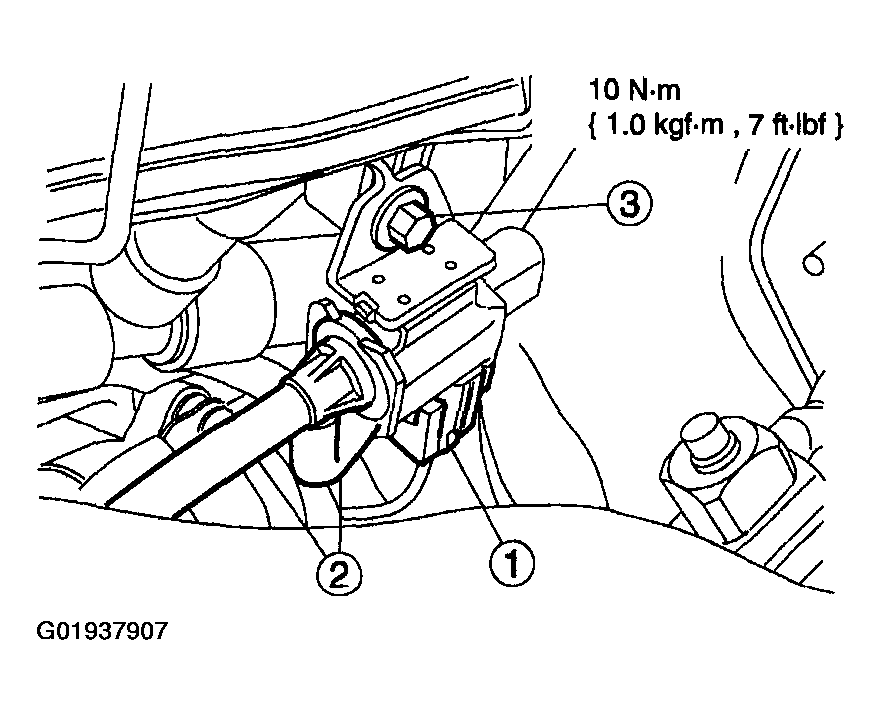

    Fig 1: Removing Intake Manifold Runner Control Actuator - 2.3L
    G01937907Courtesy of MAZDA MOTORS CORP.
  2. Remove the intake manifold runner control actuator.
    1. Disconnect the electrical connector.
    2. Disconnect the vacuum lines.
    3. Remove the bolt and the IMRC actuator.
  3. To install, reverse the removal procedure.
