Freeze frame data when pending code is set

Retrieve the following FFD from PID/DATA MONITOR & RECORD.
NOTE:
- The data will remain in the memory even if another emission-related DTC is stored, including the Misfire and Fuel System Monitor DTCs.

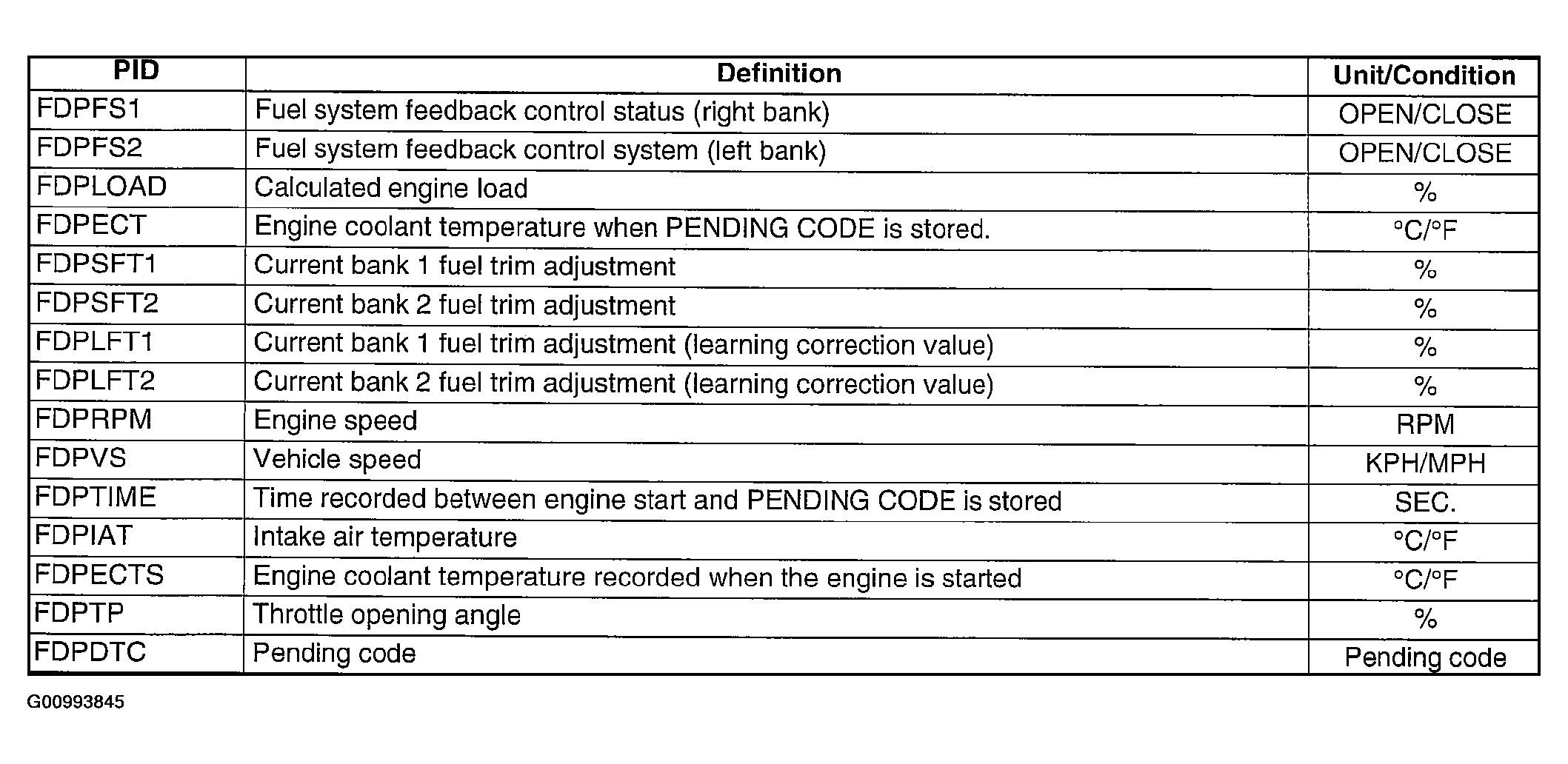

  Fig 1: Freeze Frame Data Monitor Table (When Pending Code Is Set)
  Courtesy of MAZDA MOTORS CORP.
