Inspection Using An Oscilloscope (Reference)
>>
Engine speed signal (output)
Engine speed signal (output)

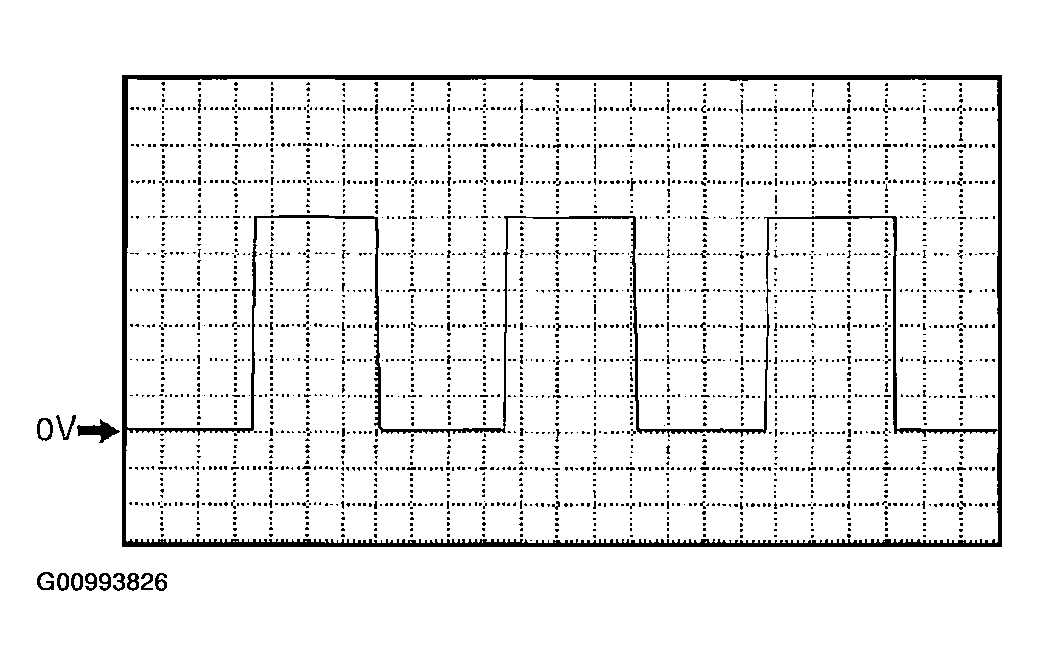

Fig 1: Engine Speed Signal Inspection (Output) By Using Oscilloscope (Reference)
Courtesy of MAZDA MOTORS CORP.
PCM terminal: 48(+)-103(-)
Oscilloscope setting: 2V/DIV (Y), 5ms/DIV (X), DC range
Vehicle condition: idle after warm up
Courtesy of MAZDA MOTORS CORP.
