NE signal

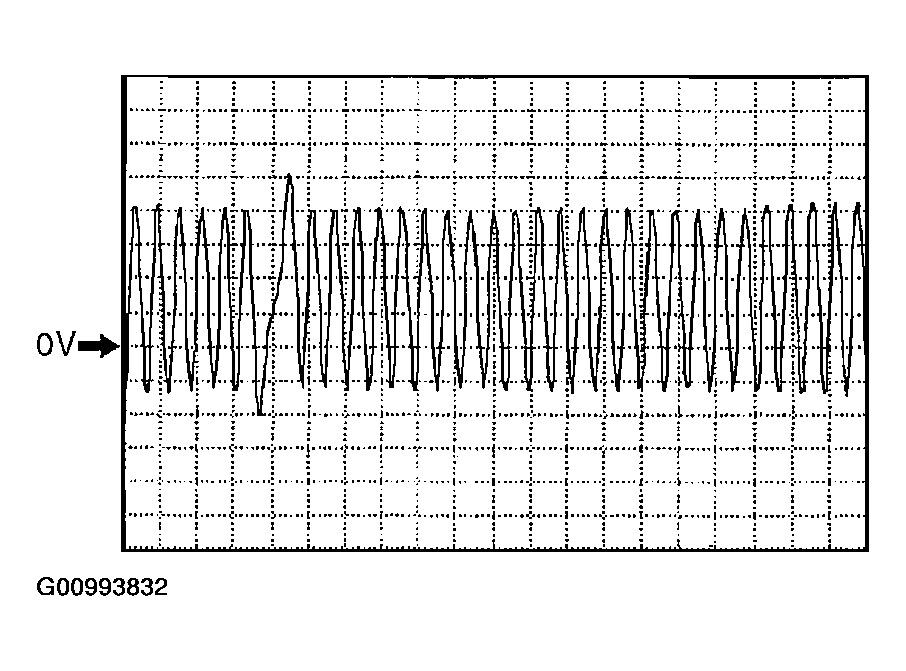

Fig 1: NE Signal Inspection By Using Oscilloscope (Reference)

G00993832

Courtesy of MAZDA MOTORS CORP.

PCM terminal: 21(+)-22(-)
Oscilloscope setting: 4V/DIV (Y), 2.5 ms/DIV (X), AC range
Vehicle condition: idle after warm up
