SGC signal

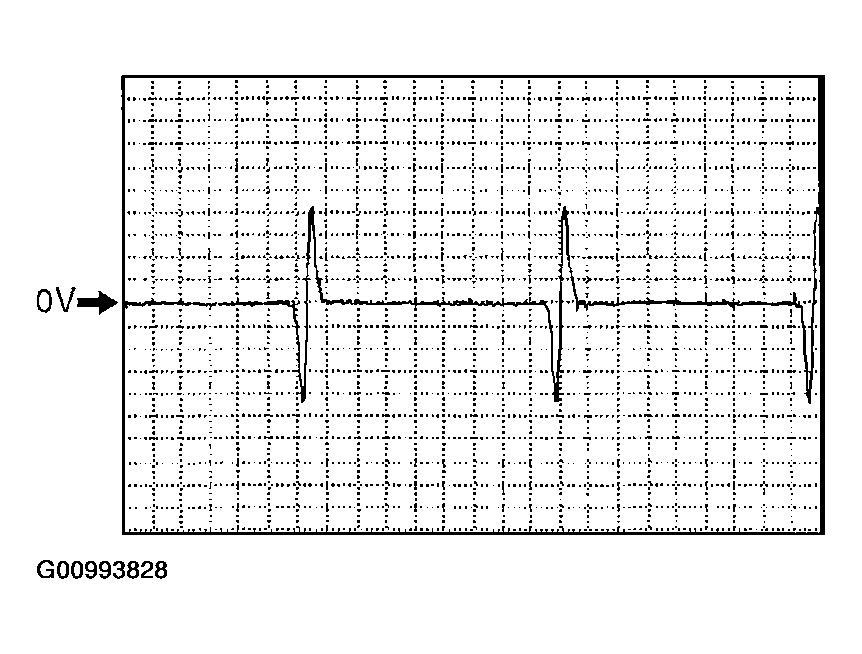

Fig 1: SGC Signal Inspection By Using Oscilloscope (Reference)

G00993828

Courtesy of MAZDA MOTORS CORP.

PCM terminal: 85(+)-86(-)
Oscilloscope setting: 0.5V/DIV (Y), 10ms/DIV (X), AC range
Vehicle condition: idle after warm up
