Continuity Inspection

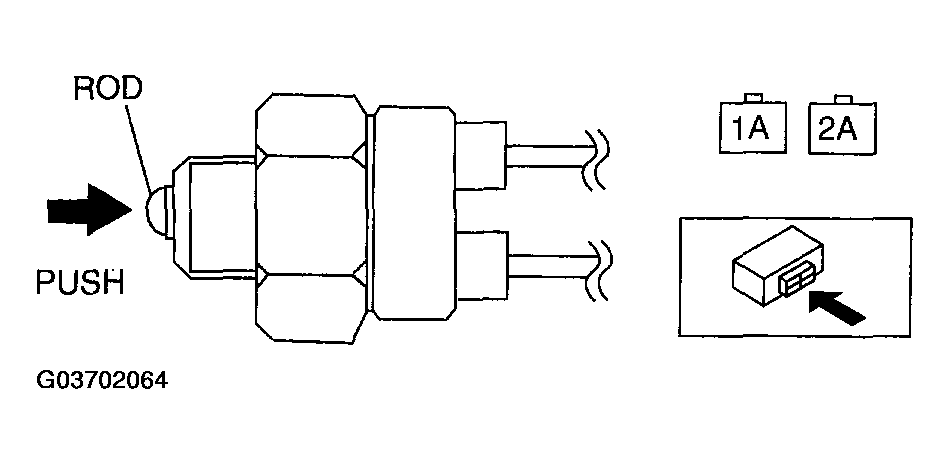

- Remove the neutral switch.
- Verify that the continuity between neutral switch terminals 1A and 2A is as indicated in the table.
- If there is no malfunction, perform the "CIRCUIT OPEN/SHORT INSPECTION ".
- If there is any malfunction, replace the neutral switch.
NEUTRAL SWITCH SPECIFICATIONMeasurement condition Continuity Push the rod. No continuity Except above Continuity detected
