Ignition Coil Removal/Installation

  1. Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
  2. Remove the battery cover.
  3. Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  4. Remove the air cleaner duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  5. Remove in order indicated. See Fig 1.
    Fig 1: Removal/Installation Sequence Of Ignition Coil
    G01345886Courtesy of MAZDA MOTORS CORP.

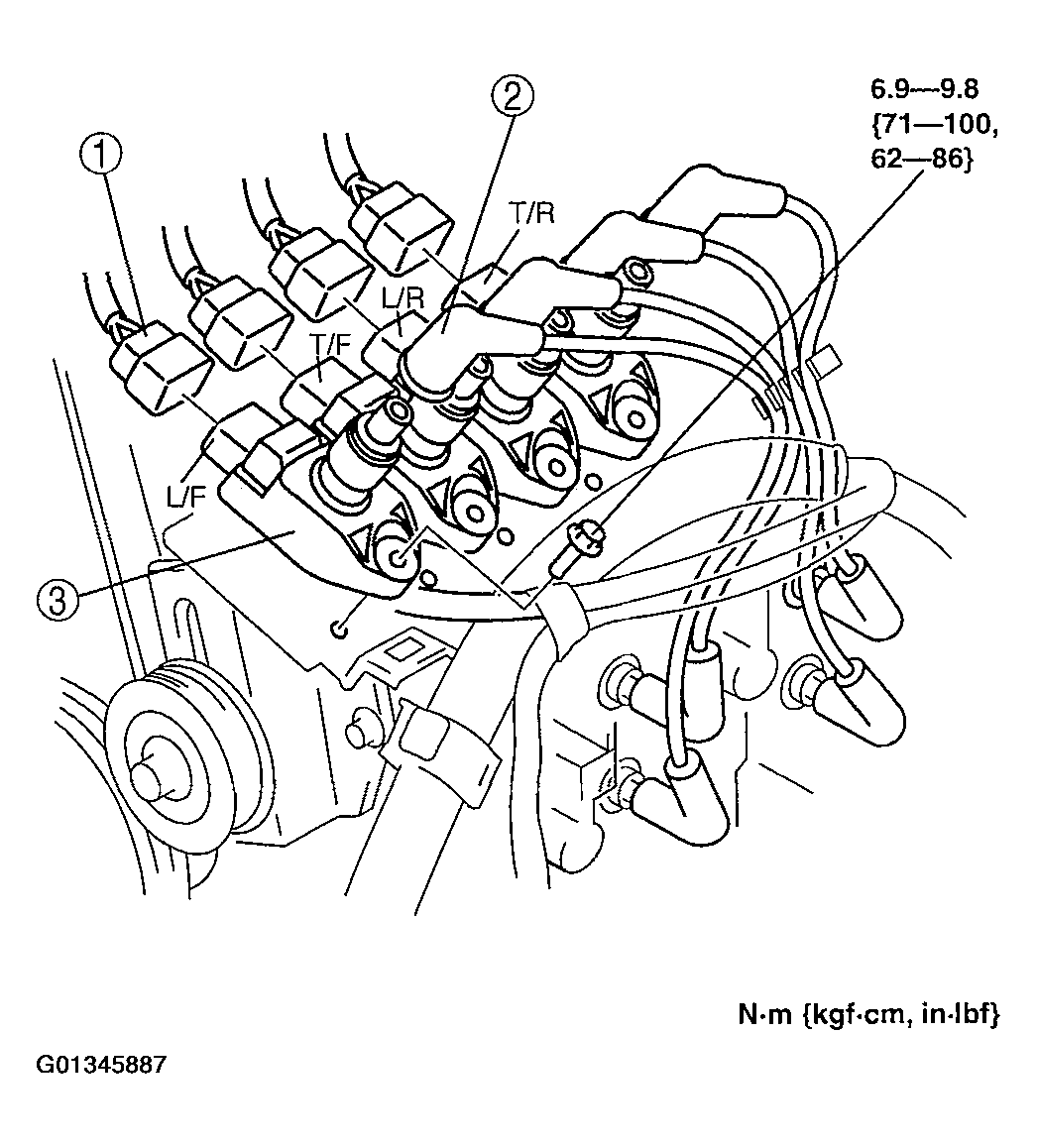

    Fig 2: Removing/Installing Ignition Coil
    G01345887Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
