Typical Diagnostic Reference Values

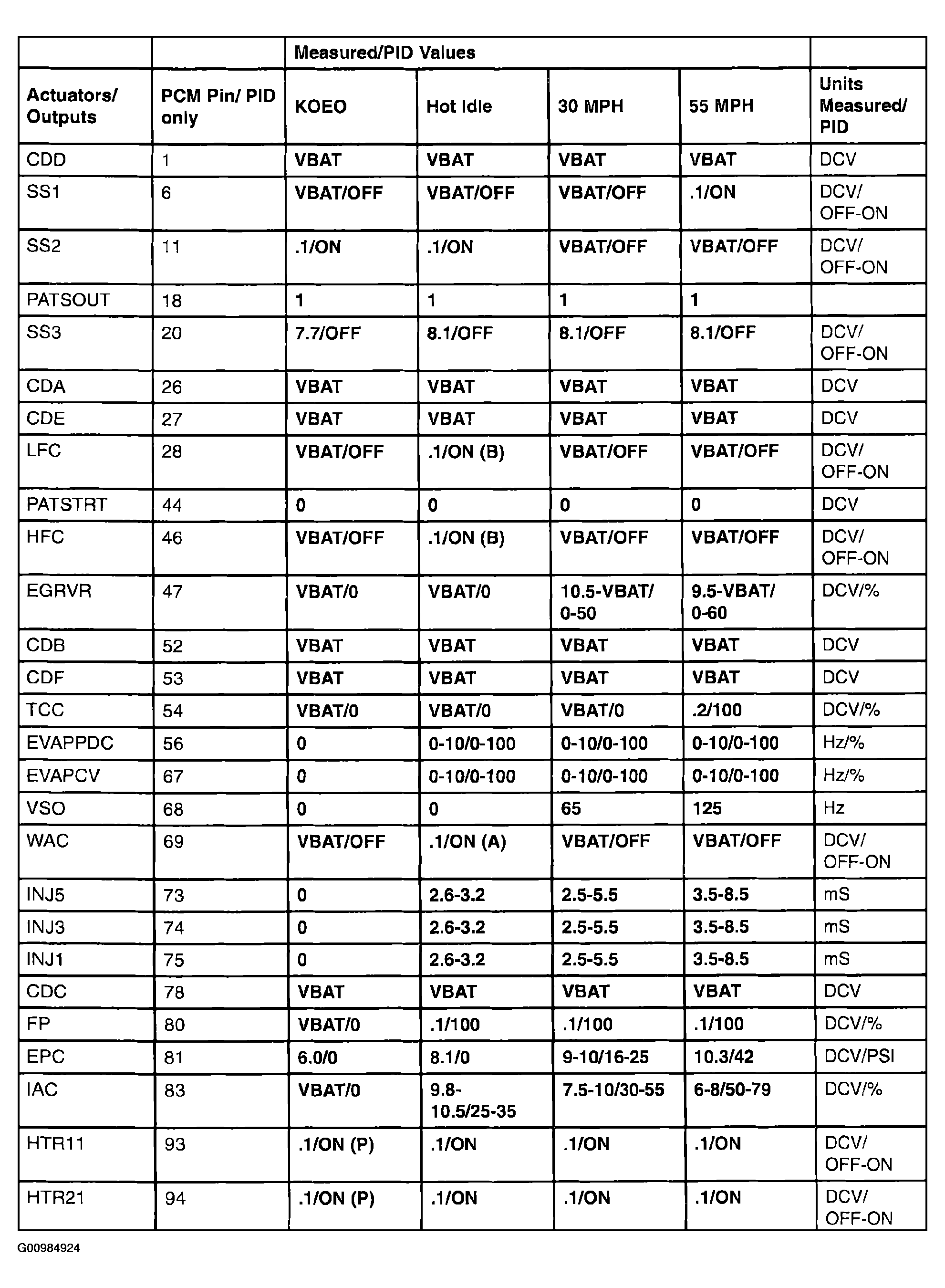

Fig 1: Identifying Typical Diagnostic Reference Values (3.0L A/T) (1 Of 2)
G00984924Courtesy of MAZDA MOTORS CORP.

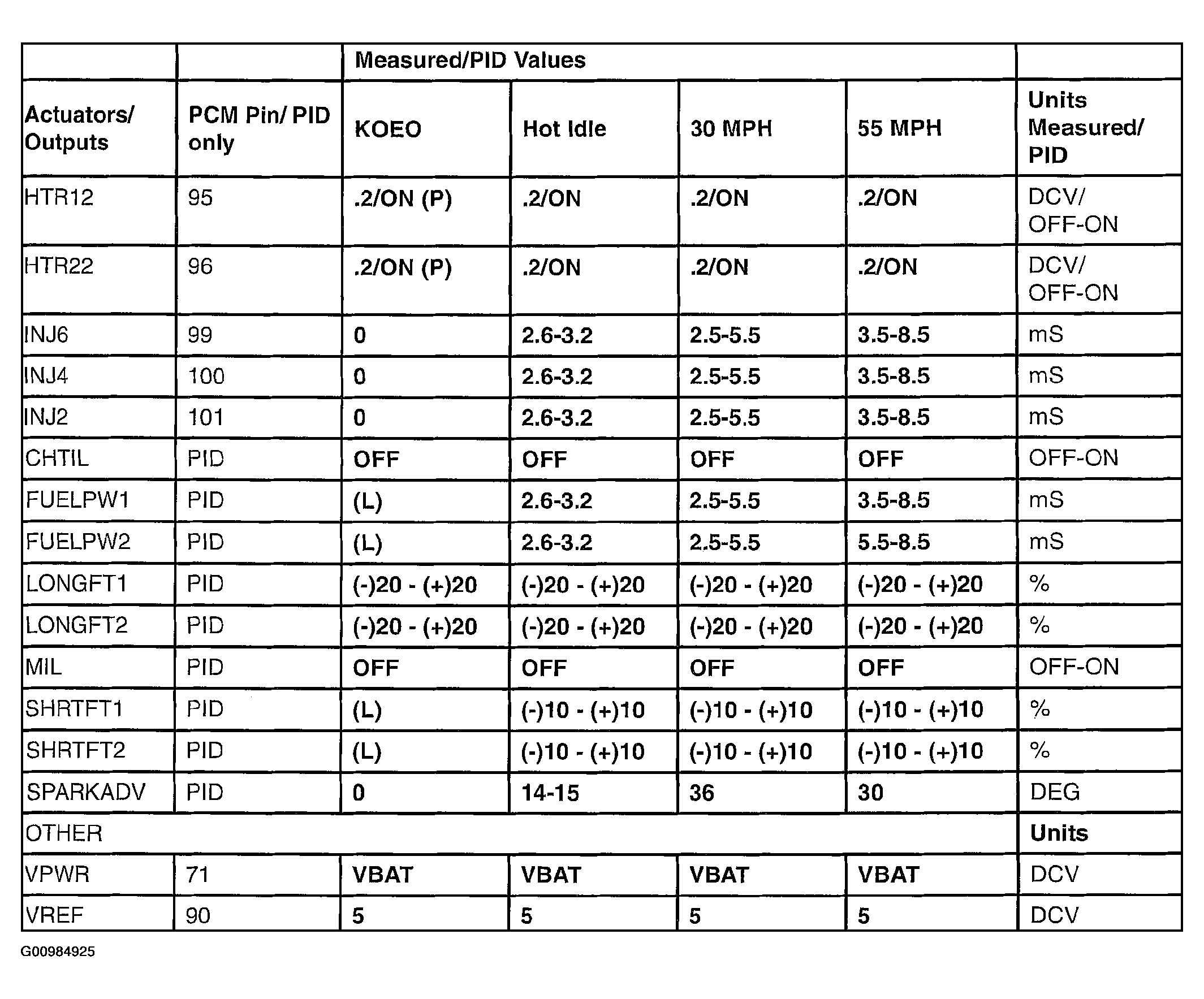

Fig 2: Identifying Typical Diagnostic Reference Values (3.0L A/T) (2 Of 2)
G00984925Courtesy of MAZDA MOTORS CORP.
