Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for an open or short circuit. (Continuity inspection)

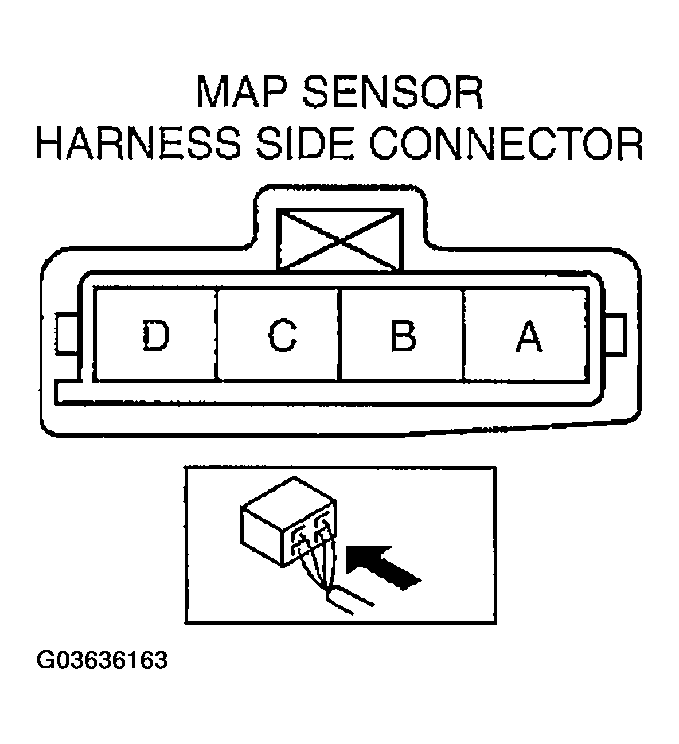

    Fig 1: Identifying MAP Sensor Harness Connector
    G03636163Courtesy of MAZDA MOTORS CORP.
