R-Clip Fittings: Disconnect

  1. Relieve the fuel pressure. See FUEL PRESSURE RELIEF  .
  2. Remove the shipping tab by bending downward.

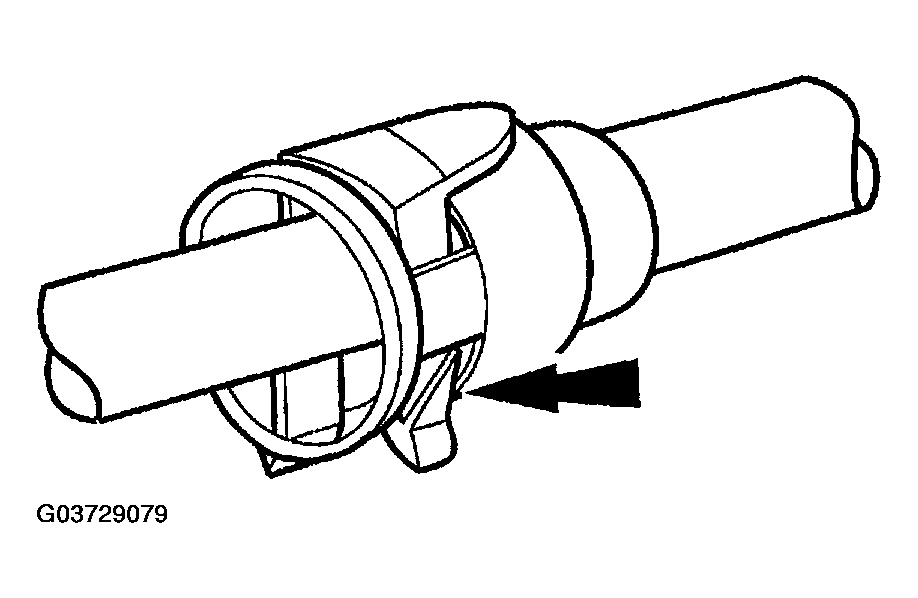

    Fig 1: Removing Shipping Tab By Bending Downward
    G03729079Courtesy of MAZDA MOTORS CORP.
  3. Spread the R-clip legs and push the clip into the fitting.

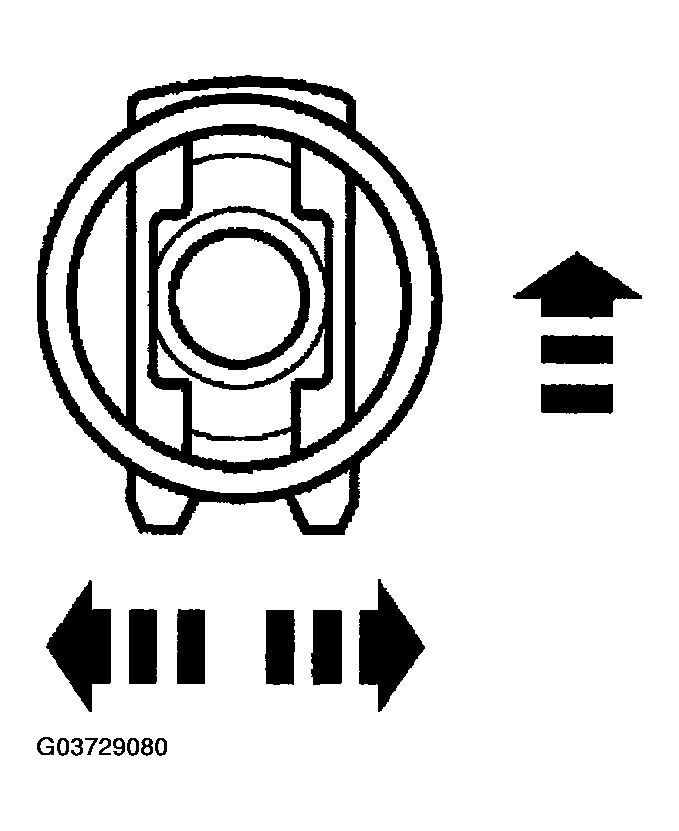

    Fig 2: Pushing Clip Into Fitting
    G03729080Courtesy of MAZDA MOTORS CORP.
  4. Separate the fitting from the tube.

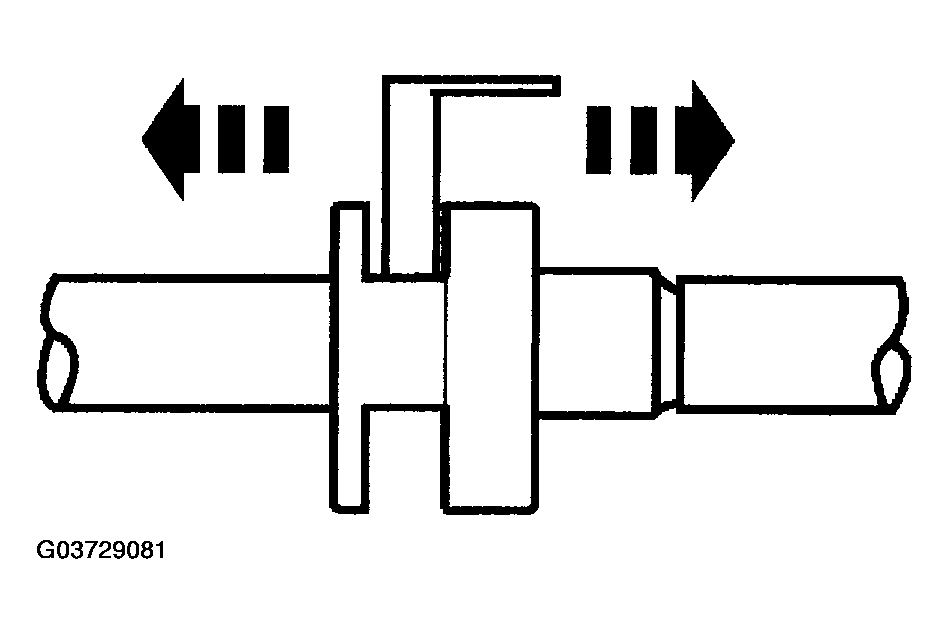

    Fig 3: Separating Fitting From Tube
    G03729081Courtesy of MAZDA MOTORS CORP.
