Resistance Inspection

  1. Verify that the throttle valve is at CTP.
  2. Inspect accelerator cable free play. (See ACCELERATOR CABLE INSPECTION .)
  3. Measure the resistance between TP sensor terminals A and C using an ohmmeter.
    • If not as specified, replace the TP sensor.
    • If as specified, but PID value or PCM terminal 40 voltage are out of specification, perform the CIRCUIT OPEN/SHORT INSPECTION .

    Specification

    1. 3.2-4.8 kilohms

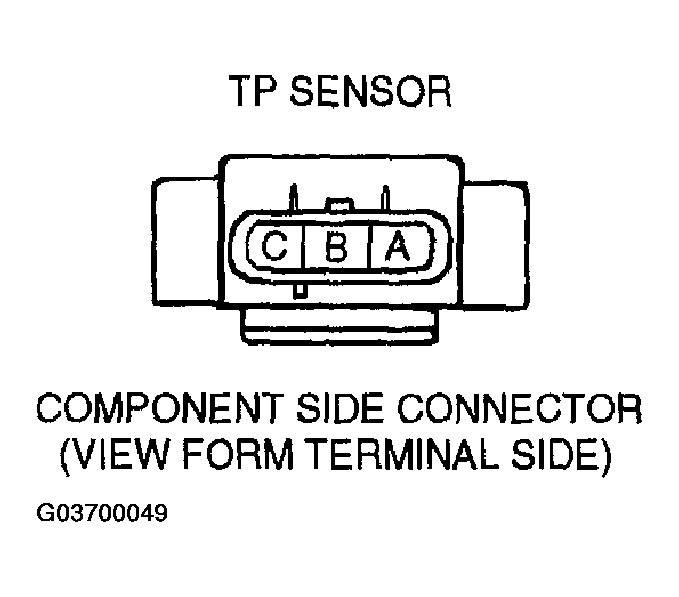

    Fig 1: Identifying Throttle Position Sensor Component Side Connector
    G03700049Courtesy of MAZDA MOTORS CORP.
