Evaporative Hose Installation Note

  1. Fit evaporative hose onto the respective fittings, and install clamps as shown.

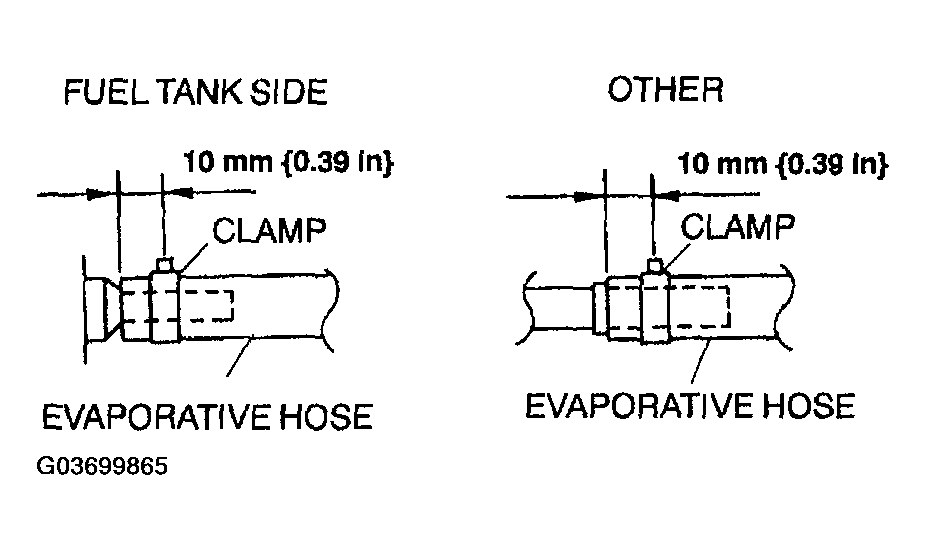

    Fig 1: Installing Evaporative Hose
    G03699865Courtesy of MAZDA MOTORS CORP.
