Joint Hose Installation Note

  1. Fit the joint hose onto the respective fittings, and install clamps as shown.

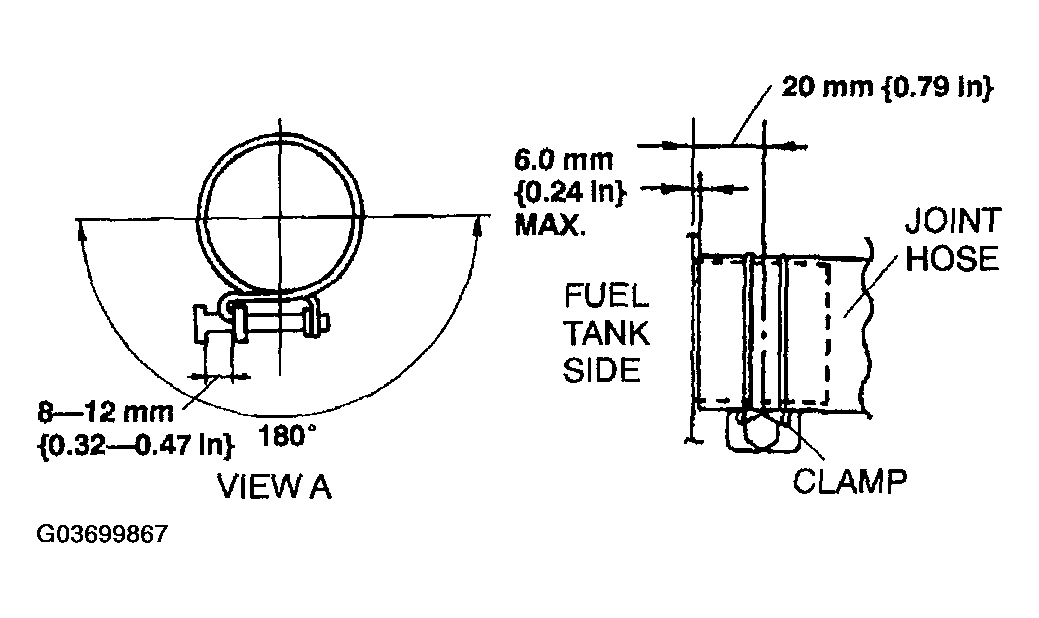

    Fig 1: Installing Joint Hose (1 Of 2)
    G03699867Courtesy of MAZDA MOTORS CORP.

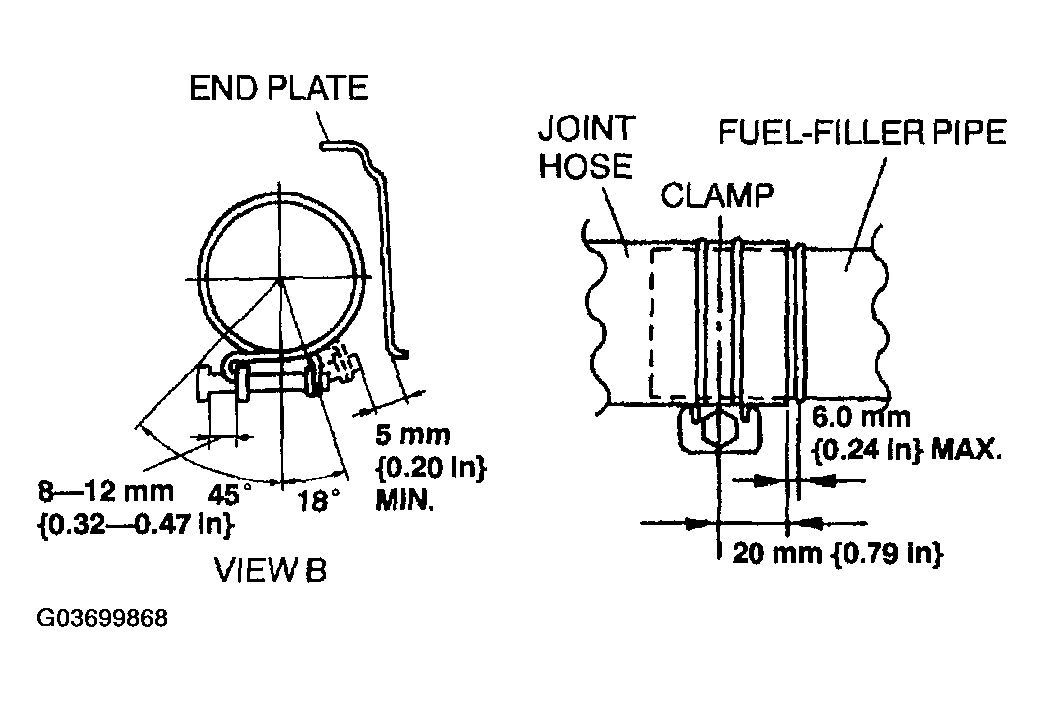

    Fig 2: Installing Joint Hose (2 Of 2)
    G03699868Courtesy of MAZDA MOTORS CORP.
