Pcm Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the TCM. (See TCM REMOVAL/INSTALLATION )
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

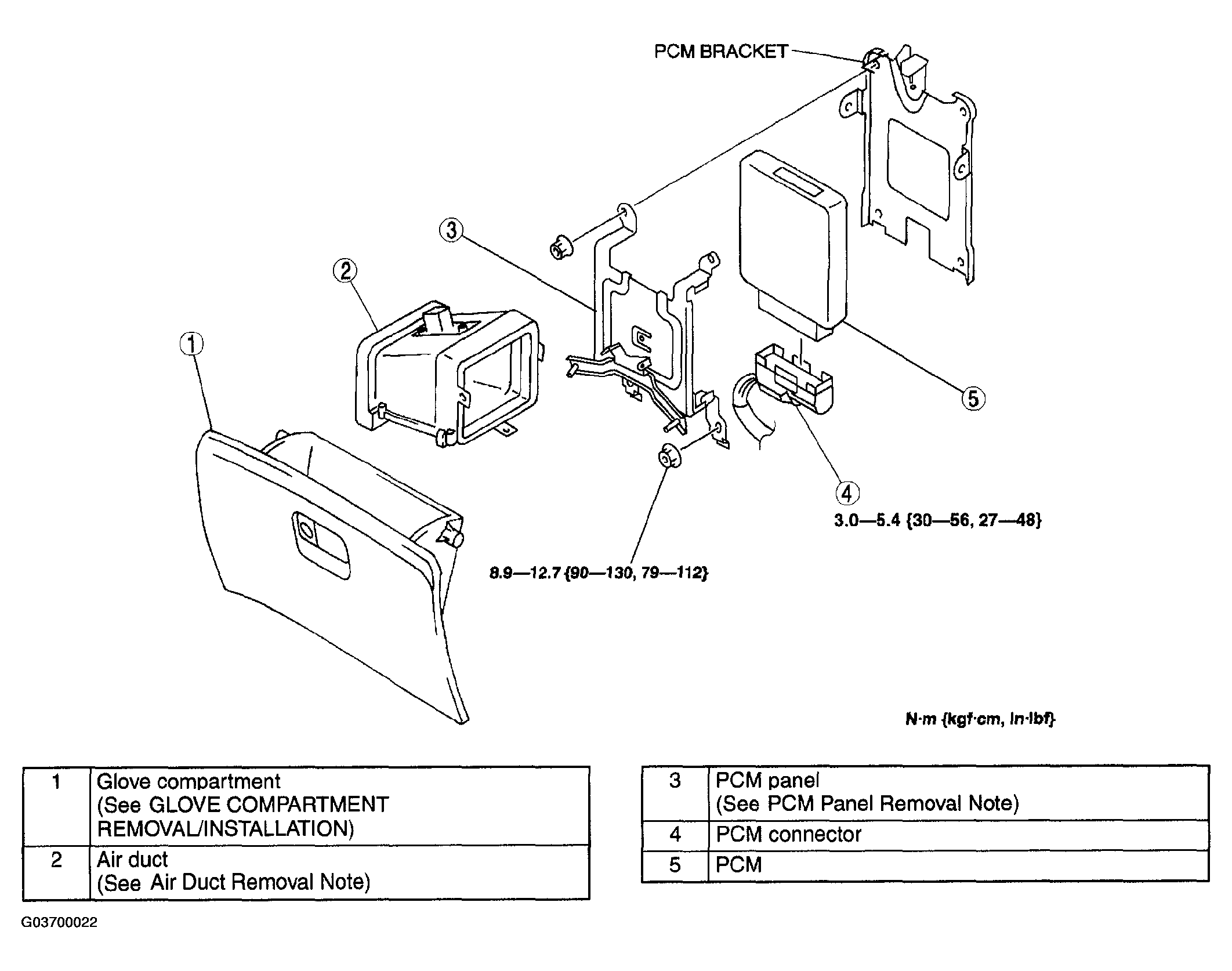

    Fig 1: Removing PCM Components In Order
    G03700022Courtesy of MAZDA MOTORS CORP.
