Control System Location Index

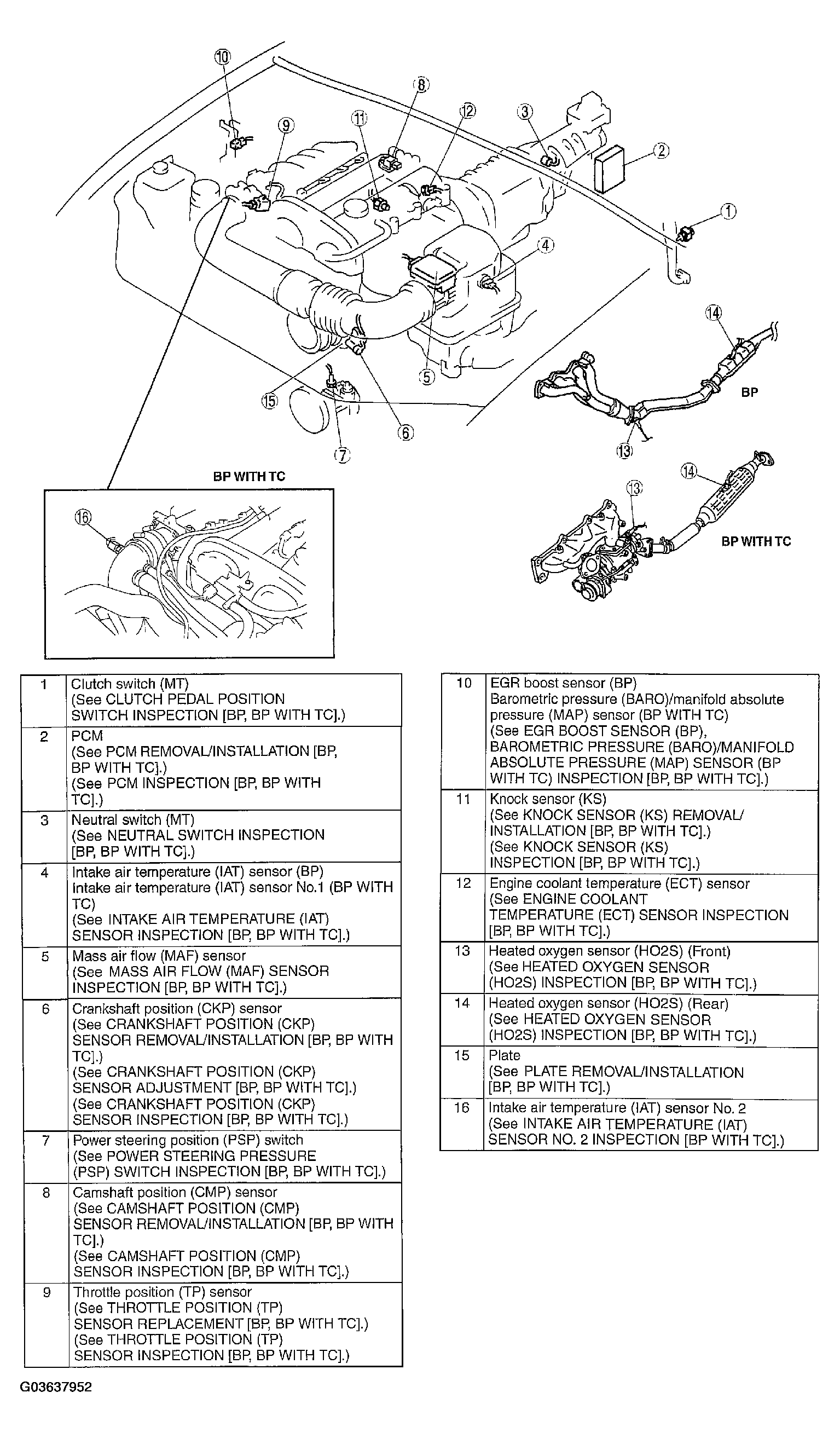

Fig 1: Locating Components Of Control System (BP, BP With TC)

G03637952

Courtesy of MAZDA MOTORS CORP.
