Home >> Mazda >> 2005 >> Tribute i, FWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Throttle Position (TP) Sensor - 2.3L >> Notes

Throttle Position (TP) Sensor - 2.3L: Notes

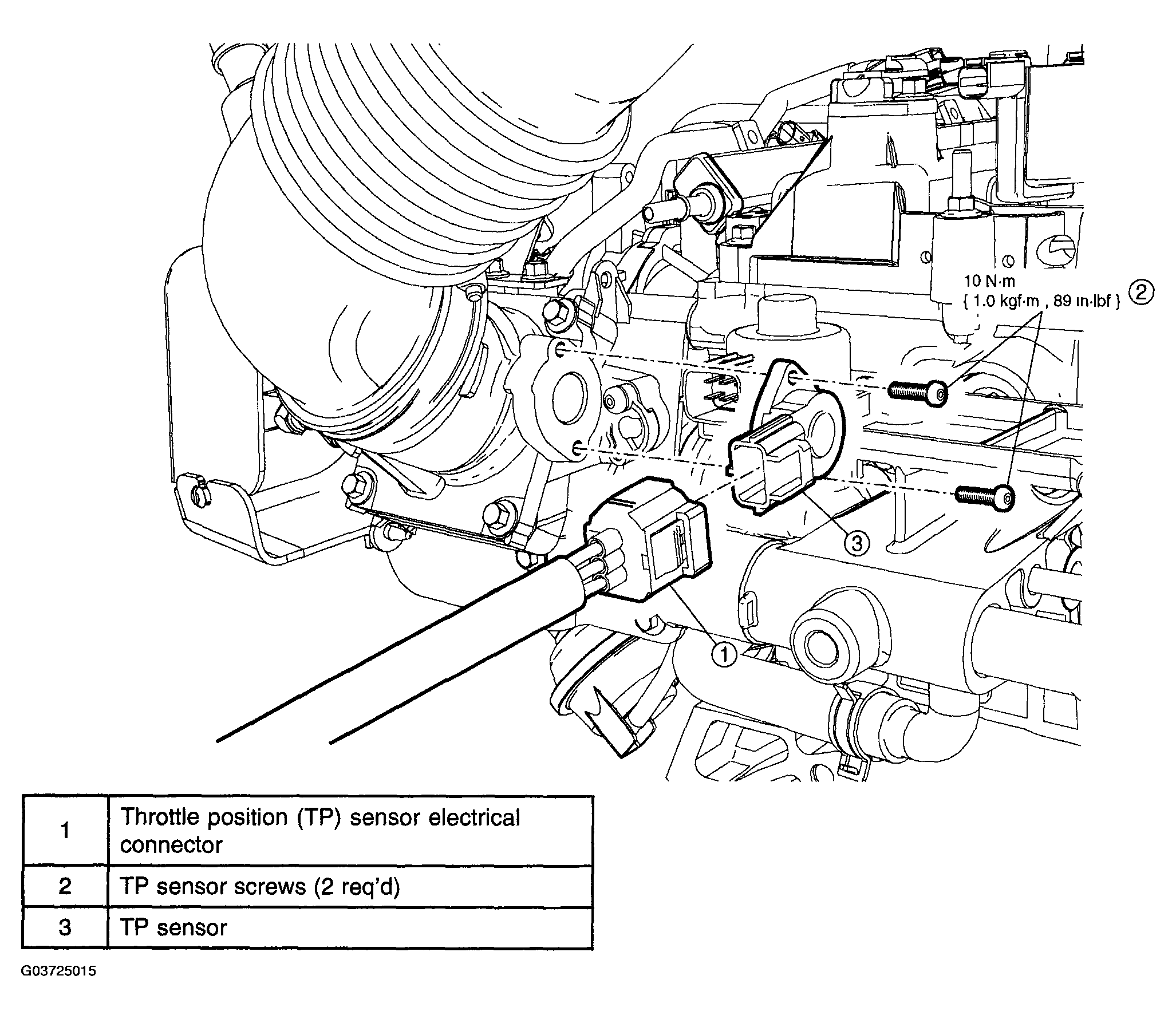

Fig 1: Removing/Installing Throttle Position (TP) Sensor & Torque Specifications - 2.3L

G03725015

Courtesy of MAZDA MOTORS CORP.
