Home >> Mazda >> 2006 >> B3000 Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Camshaft Synchronizer Removal / Installation - 3.0L >> Notes

Camshaft Synchronizer Removal / Installation - 3.0L: Notes

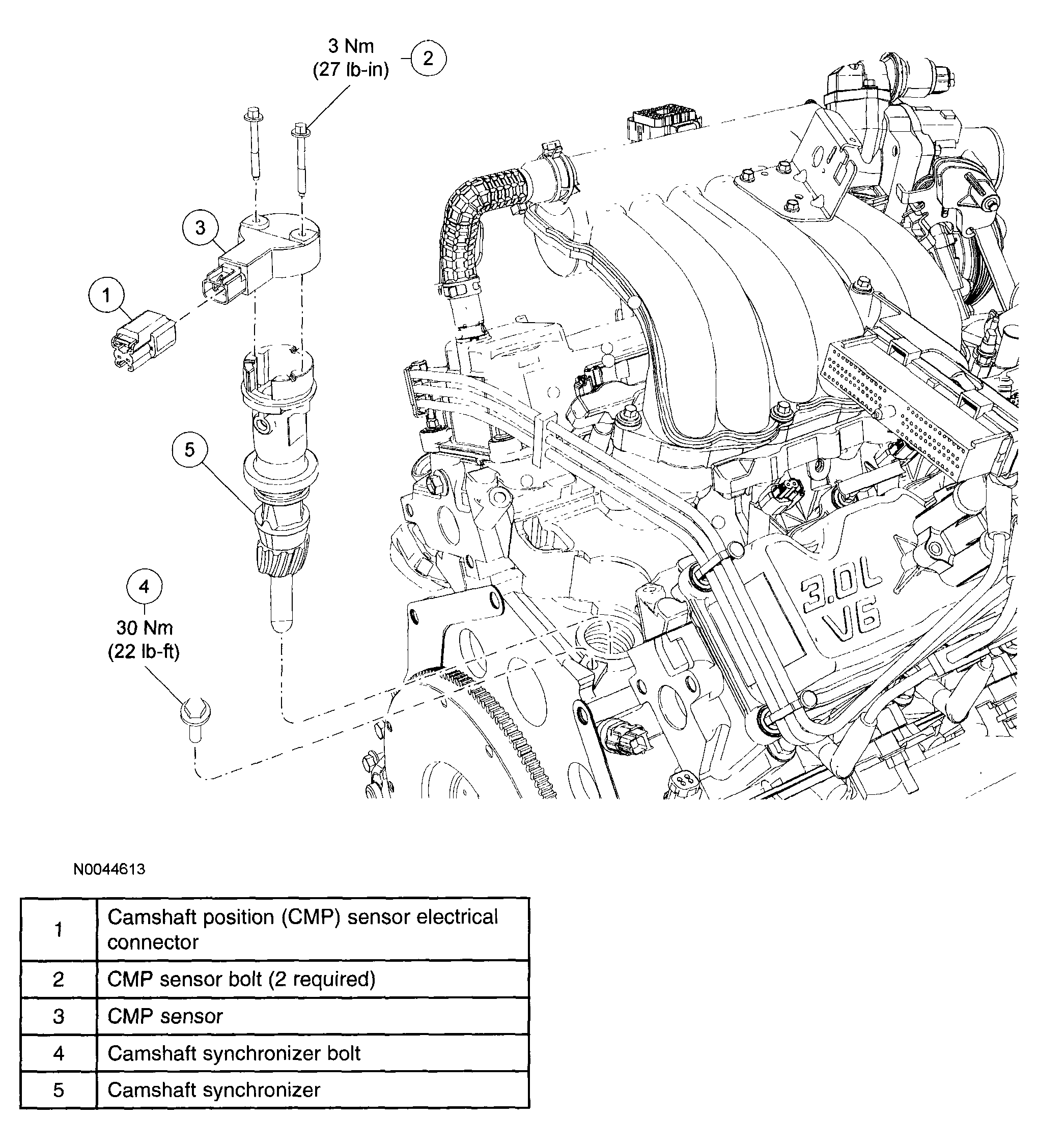

Fig 1: Removing /Installing Camshaft Synchronizer

G04308363

Courtesy of MAZDA MOTORS CORP.
