Control System Wiring Diagram
>>
With Rear HO2S Model
>>
With immobilizer system
With immobilizer system

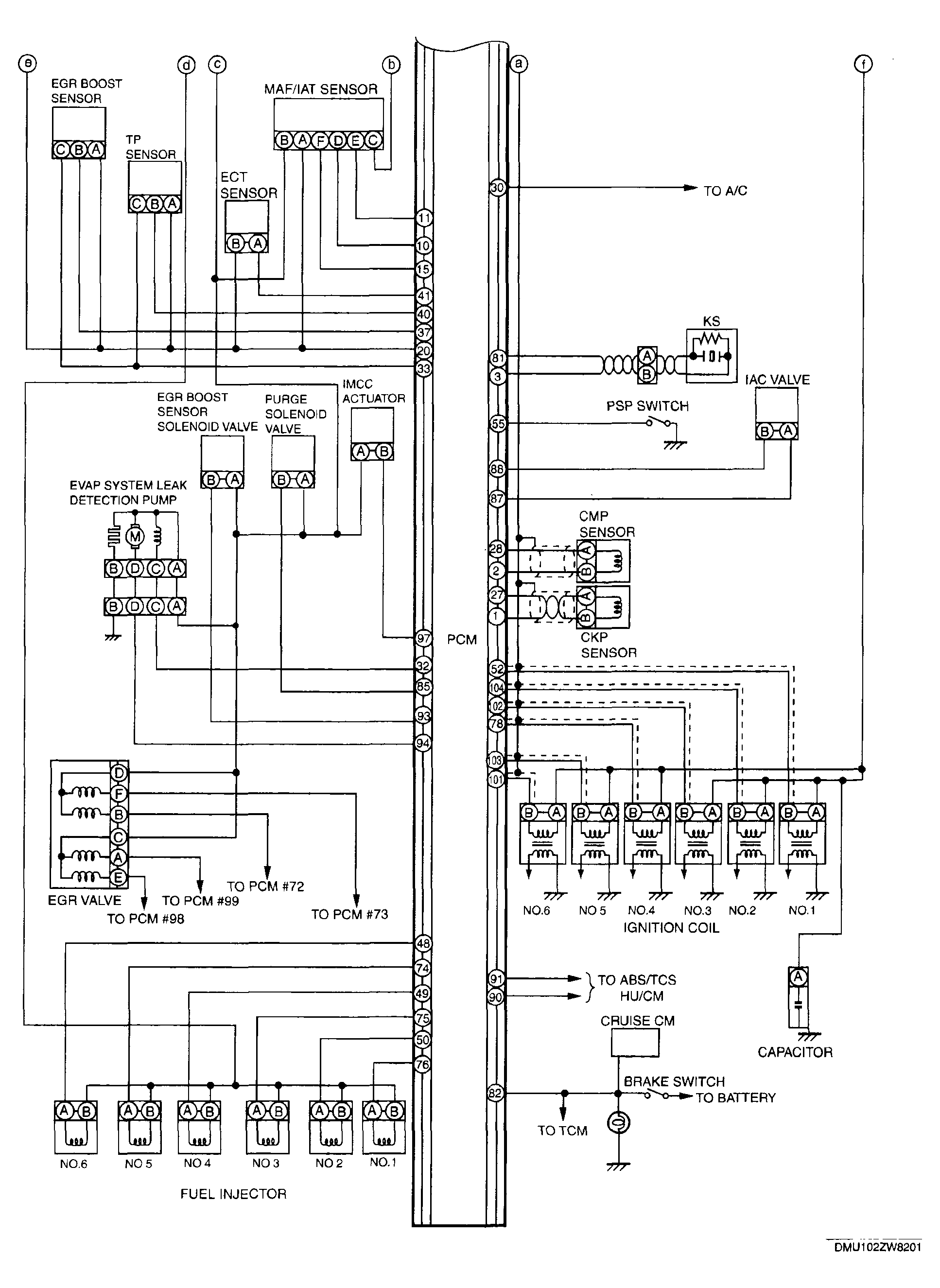

Fig 1: Control System Wiring Diagram - With Immobilizer System (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

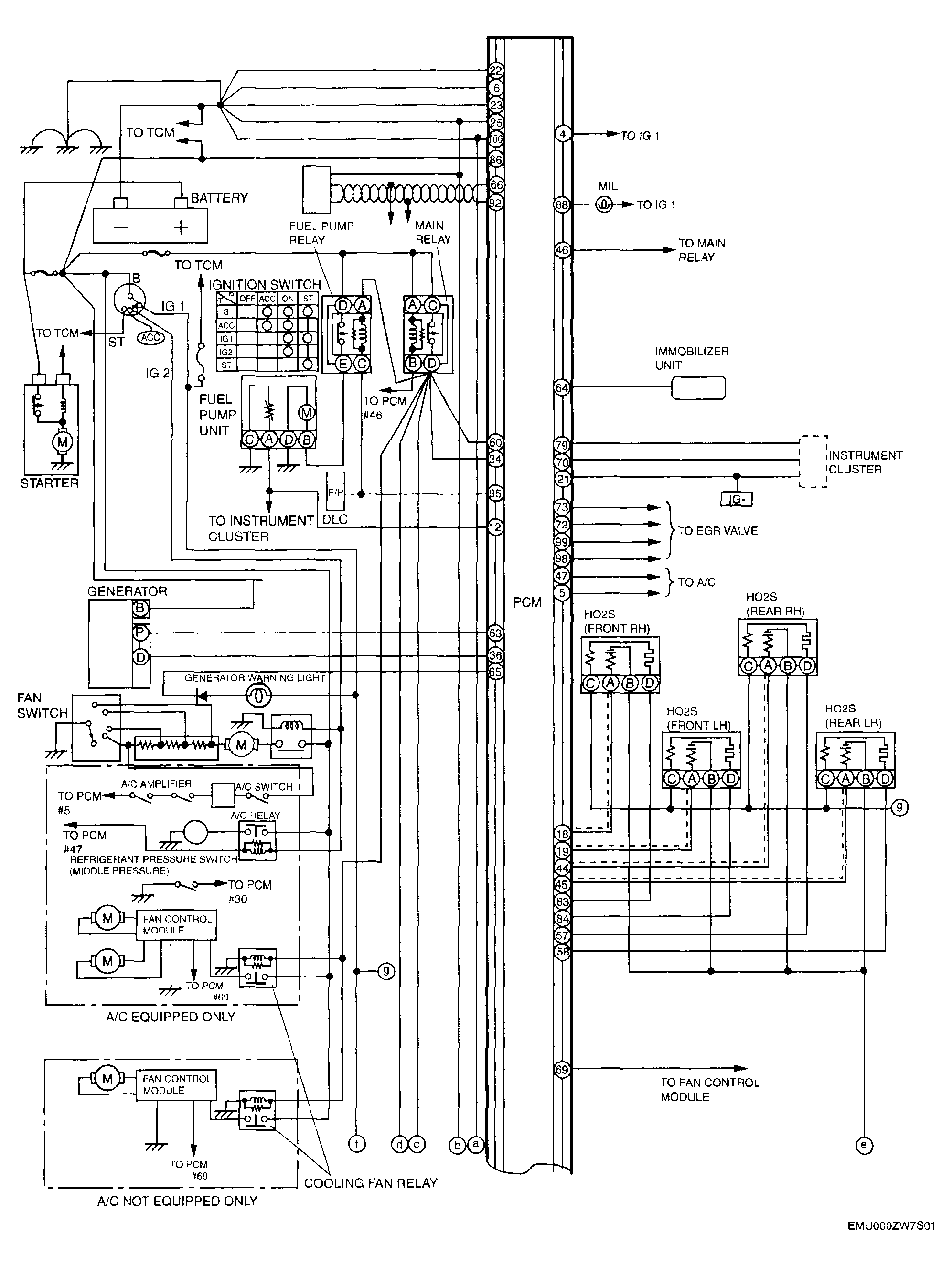

Fig 2: Control System Wiring Diagram - With Immobilizer System (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
