Control System Wiring Diagram
>>
With Rear HO2S Model
>>
Without immobilizer system
Without immobilizer system

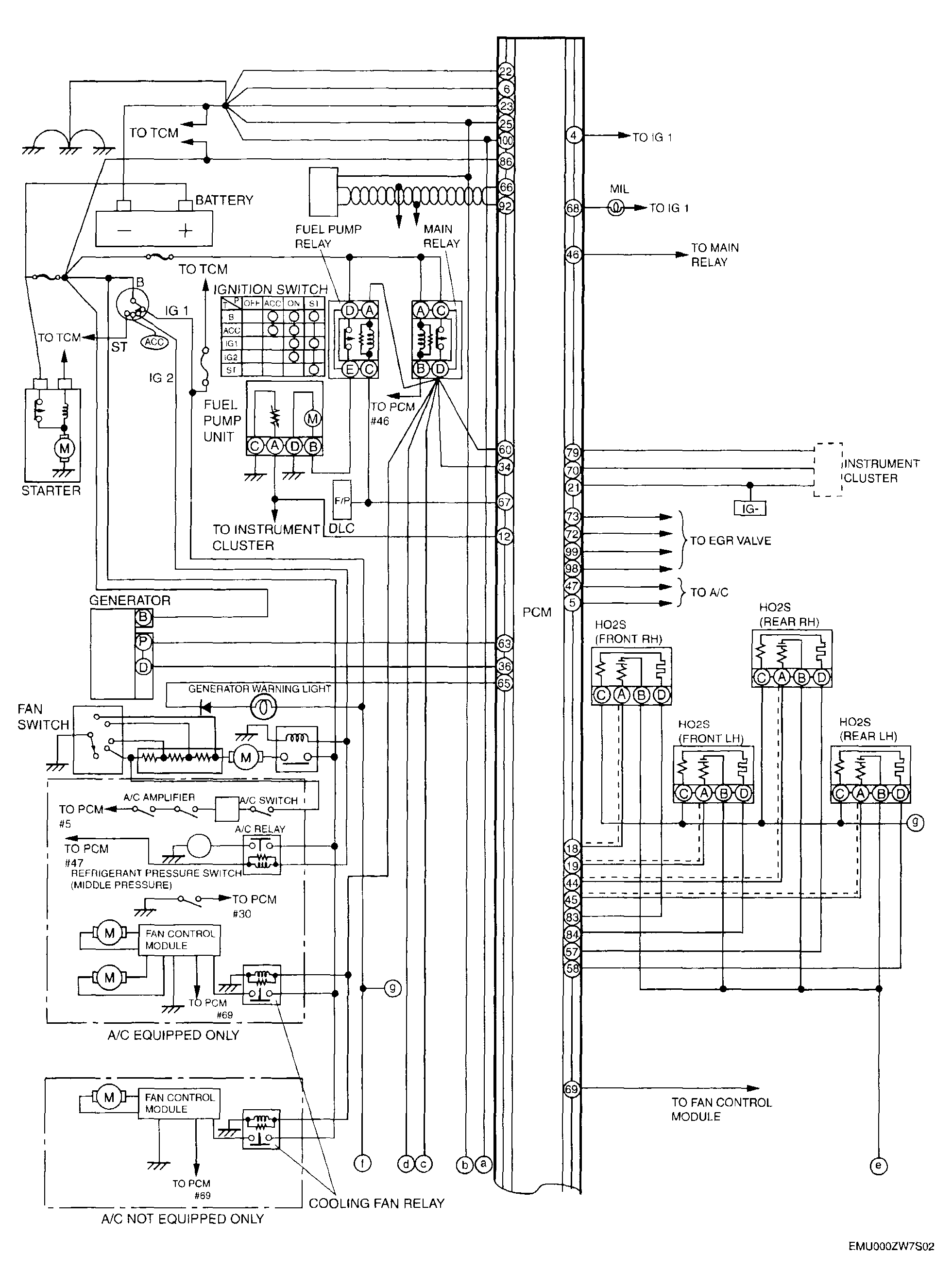

Fig 1: Control System Wiring Diagram - Without Immobilizer System (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Control System Wiring Diagram - Without Immobilizer System (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
