2006
>>
MPV ES
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Wiring Diagram
>>
Without immobilizer system
Without immobilizer system

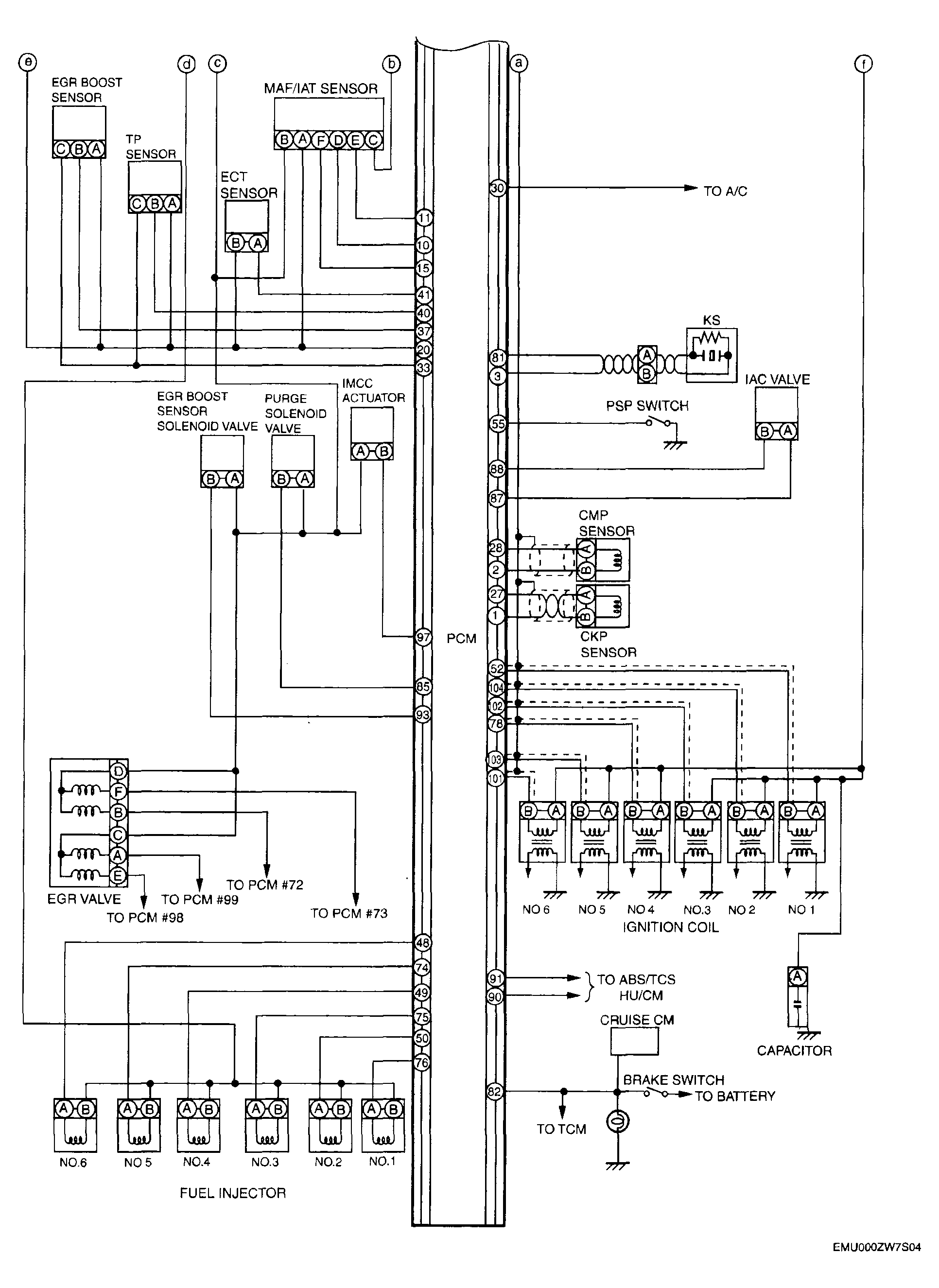

Fig 1: Control System Wiring Diagram - Without Rear HO2S Model (Without Immobilizer System) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

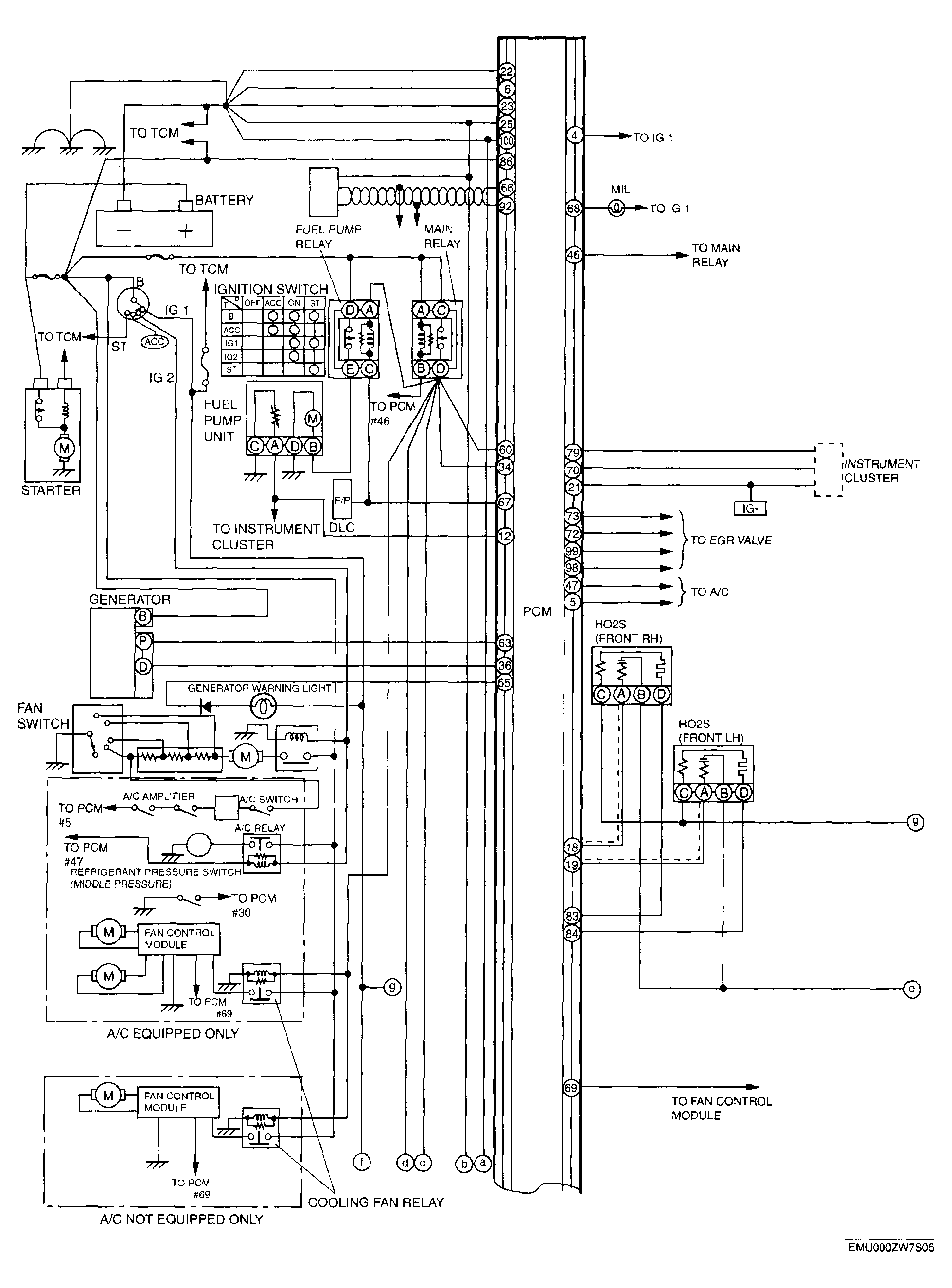

Fig 2: Control System Wiring Diagram - Without Rear HO2S Model (Without Immobilizer System) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
