Circuit Open/Short Inspection: Notes

Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION .)
Connect the SST (104 Pin Breakout Box) with the PCM disconnected.
Tighten the connector attaching bolt.
Tightening torque

3.0-5.4 N.m {30-56 kgf.cm, 27-48 in.lbf}

Fig 1: Connecting 104 Pin Breakout Box
Inspect the following wiring harness for open or short circuit (continuity check).

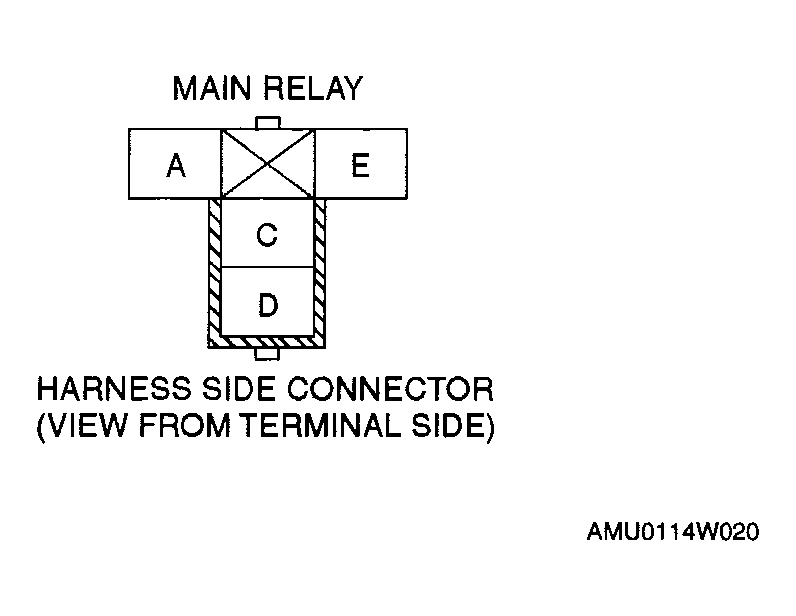

Fig 2: Identifying Main Relay Connector
