Home >> Mazda >> 2006 >> MPV ES >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Fuel Pump Unit Inspection >> Circuit Open/Short Inspection >> Notes

Circuit Open/Short Inspection: Notes

  1. Inspect the following wiring harness for open or short circuit (continuity check).

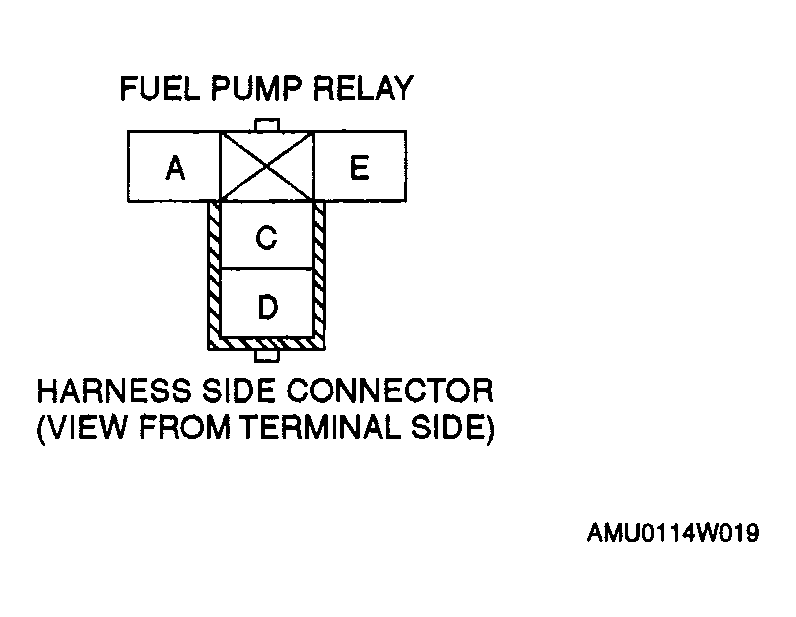

Fig 1: Identifying Fuel Pump Relay Connector
G04328161
