Fuel Tank Removal/Installation
>>
Joint Hose Installation Note
Joint Hose Installation Note
Fit the joint hose onto the respective fittings, and install clamps as shown.

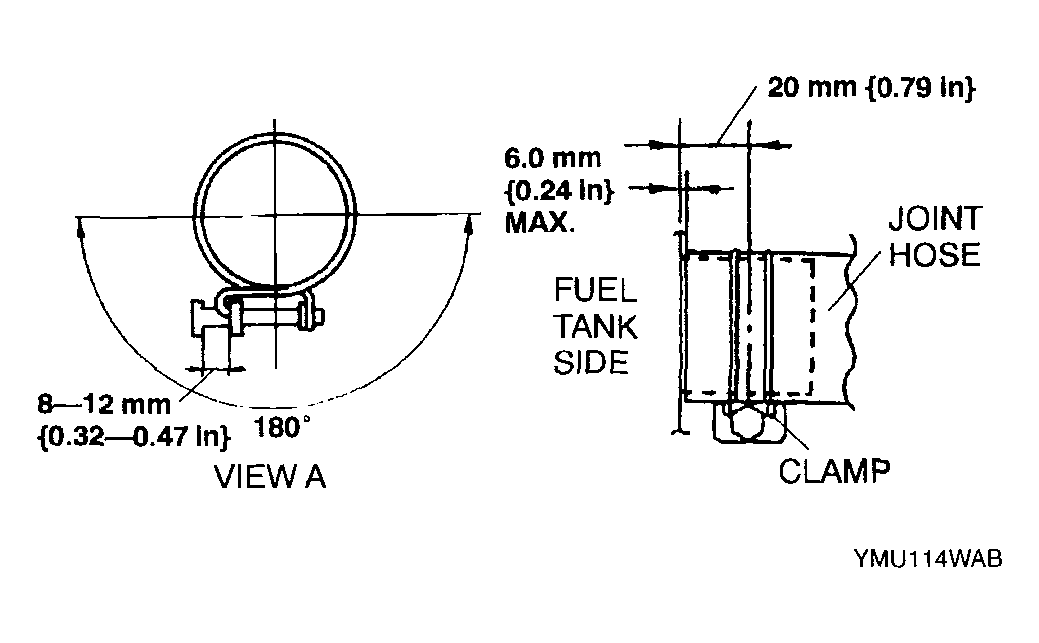

Fig 1: Installing Joint Hose Clamp (1 Of 2)

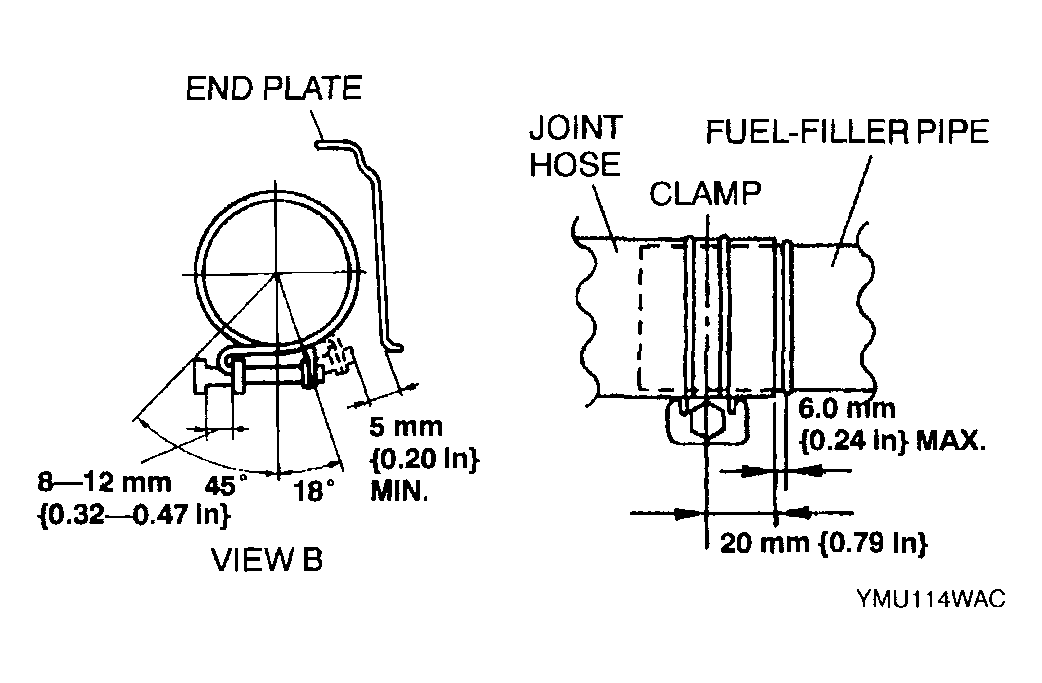

Fig 2: Installing Joint Hose Clamp (2 Of 2)
