Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Diagram
>>
With Rear HO2S Model
With Rear HO2S Model

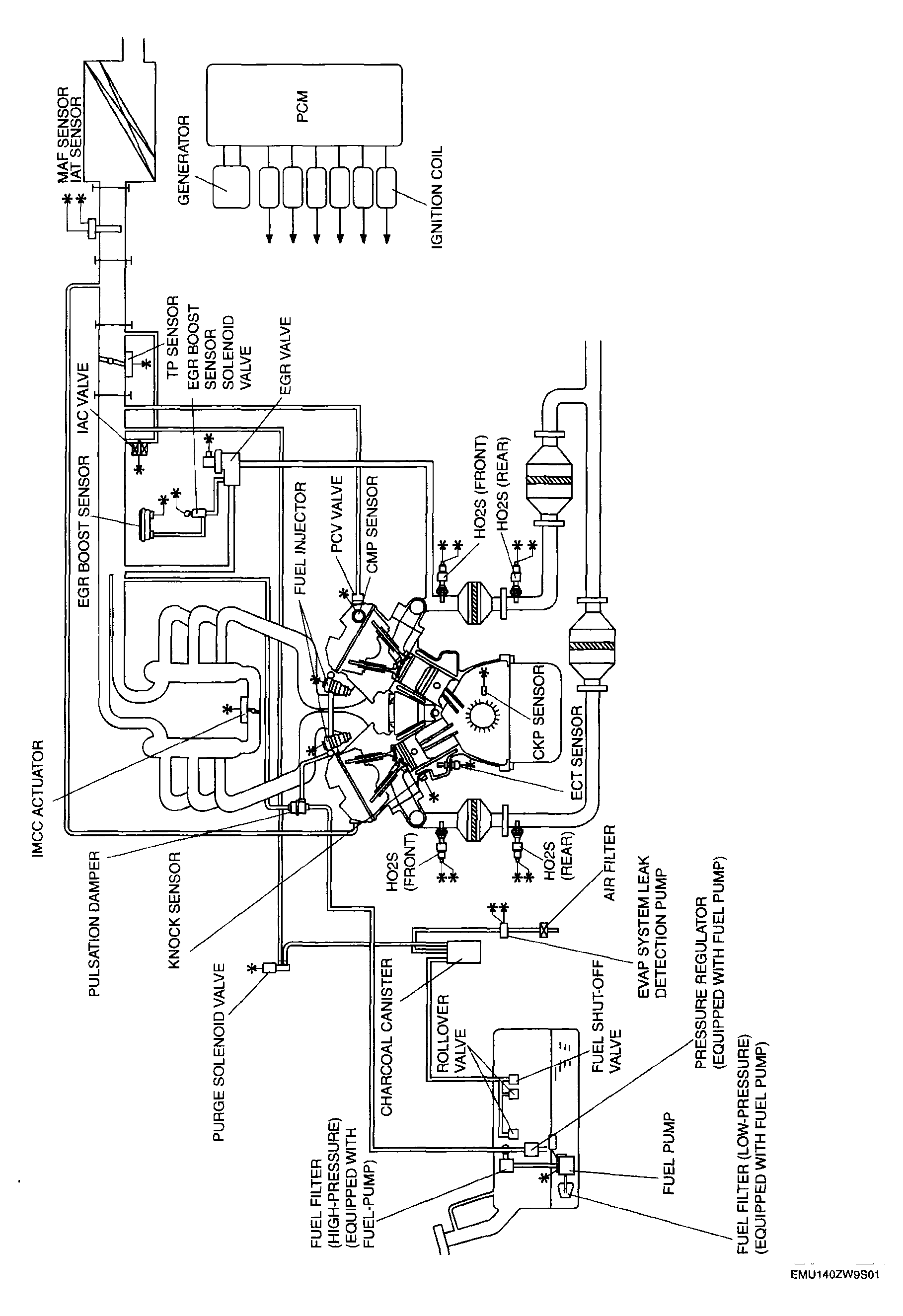

Fig 1: Control System Diagram - With Rear HO2S Model
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
