Heated Oxygen Sensor (Ho2S) Removal / Installation
>>
4.0L Engine
4.0L Engine

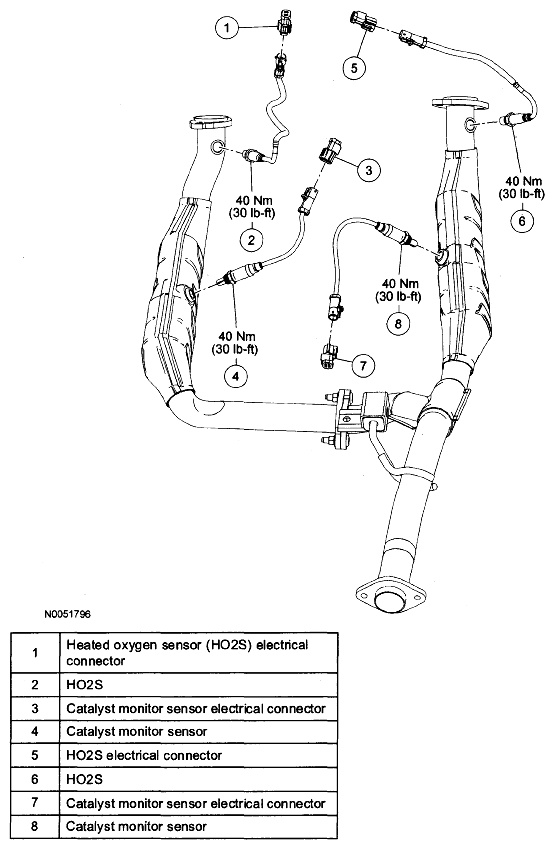

Fig 1: Heated Oxygen Sensor (HO2S) Replacement Components With Torque Specifications - 4.0L Engine
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
