Circuit Open/Short Inspection: Notes

  1. Disconnect the PCM connectors.
  2. Disconnect the APP sensor connector.
  3. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)

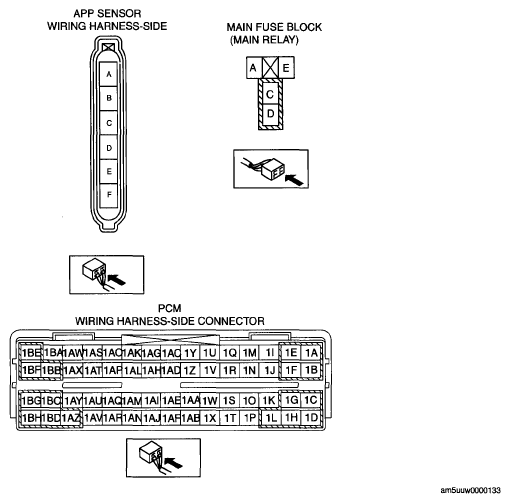

    Fig 1: Identifying PCM And Accelerator Pedal Position Sensor Connector Terminals
    G05543235Courtesy of MAZDA MOTORS CORP.
