Engine Control System [L3]
>>
Control System Wiring Diagram
Control System Wiring Diagram

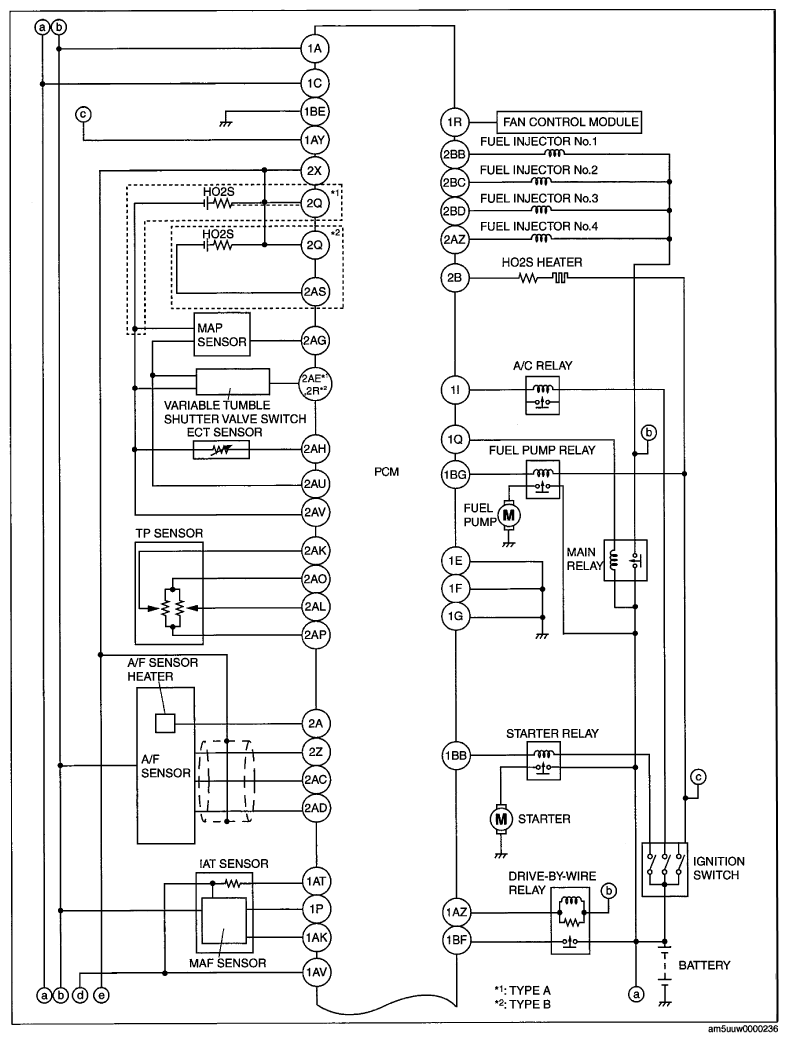

Fig 1: Control System - Wiring Diagram (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

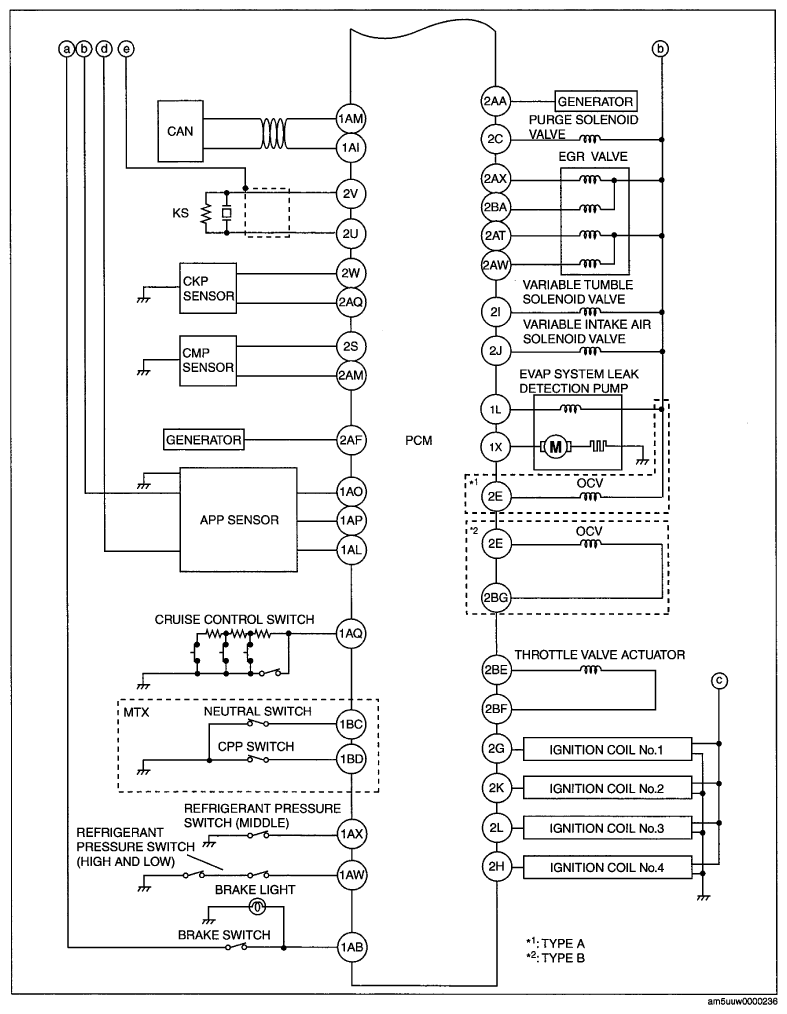

Fig 2: Control System - Wiring Diagram (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
