Circuit Open/Short Inspection: Notes

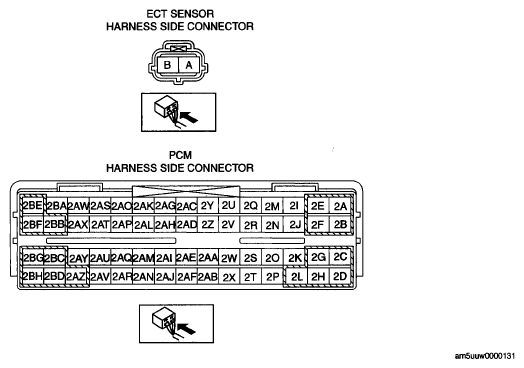

Fig 1: Identifying Engine Coolant Temperature Sensor And PCM Connectors Terminals
G05543225Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harnesses for an open or short circuit. (Continuity inspection)
