Circuit Open/Short Inspection: Notes

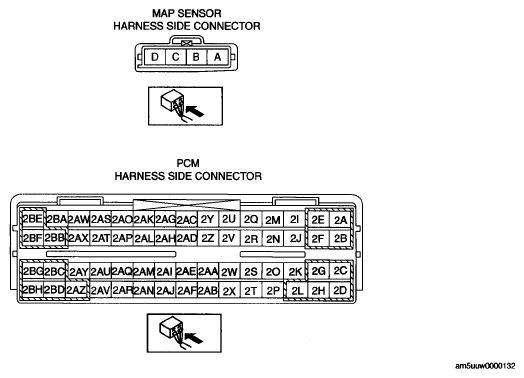

Fig 1: Identifying PCM And Manifold Absolute Pressure Sensor Connector Terminals
G05543230Courtesy of MAZDA MOTORS CORP.
  1. Disconnect the PCM connector.
  2. Inspect the following wiring harness for an open or short circuit. (Continuity inspection)
