ECT Sensor No. 2

  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [L3 WITH TC] ).
  2. Disconnect the negative battery cable.
  3. Drain the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS ).
  4. Disconnect the ECT sensor No. 2 connector.
  5. Remove the ECT sensor No. 2 using the SST.
    NOTE:
    • Wipe off any oil or engine coolant if it gets on the ECT sensor No. 2 installation area.
  6. Install in the reverse order of removal.
  7. Refill the engine coolant. (See COOLING SYSTEM SERVICE WARNINGS ).

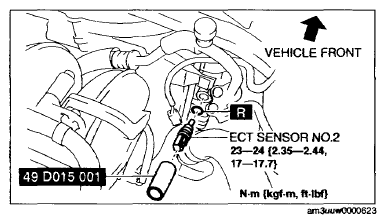

    Fig 1: ECT Sensor No. 2 With Torque Specifications
    G07868464Courtesy of MAZDA MOTORS CORP.
