Control System Diagram

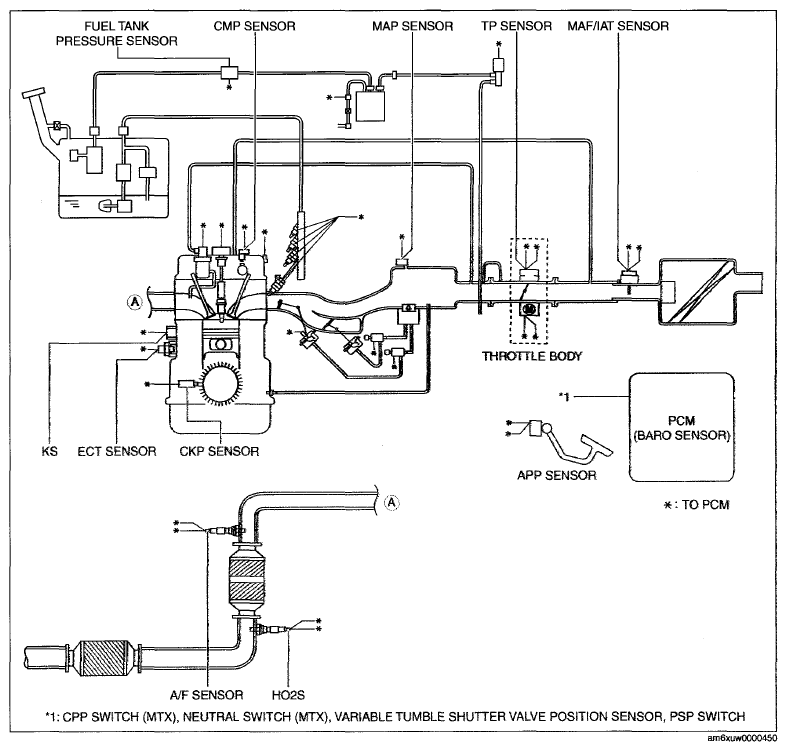

Fig 1: Control System Diagram (MZR 2.5)
G07620699Courtesy of MAZDA MOTORS CORP.

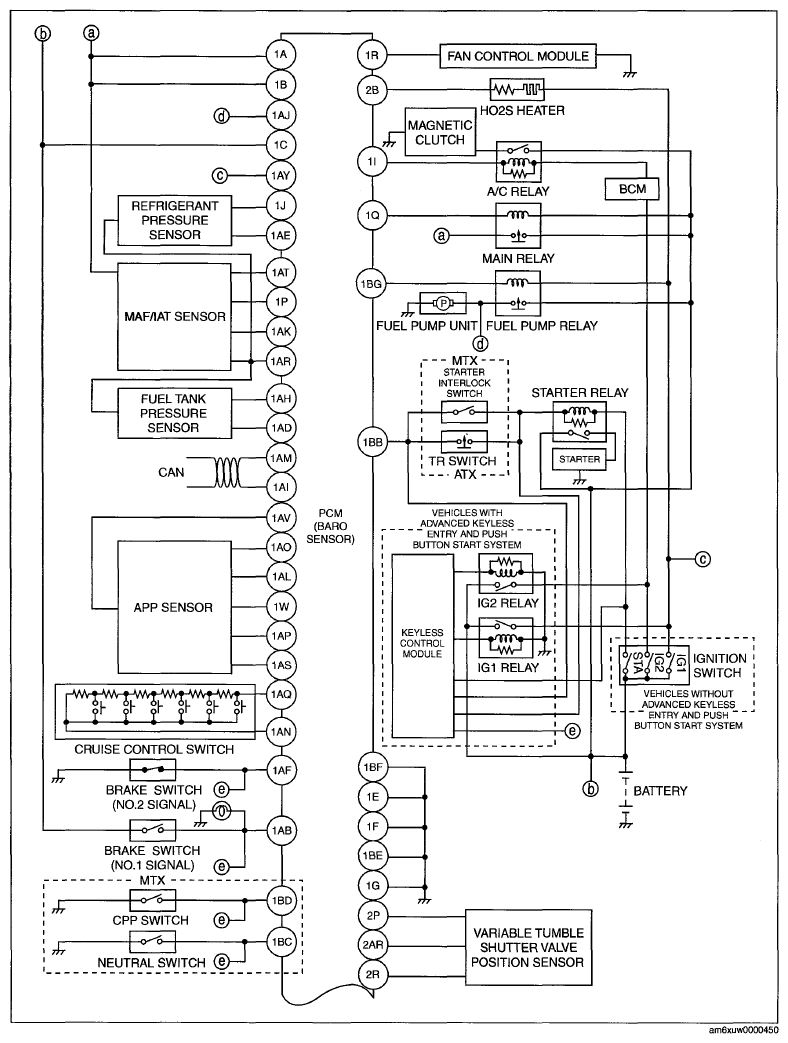

Fig 1: Control System Wiring Diagram (MZR 2.5; 1 Of 2)
G07620700Courtesy of MAZDA MOTORS CORP.

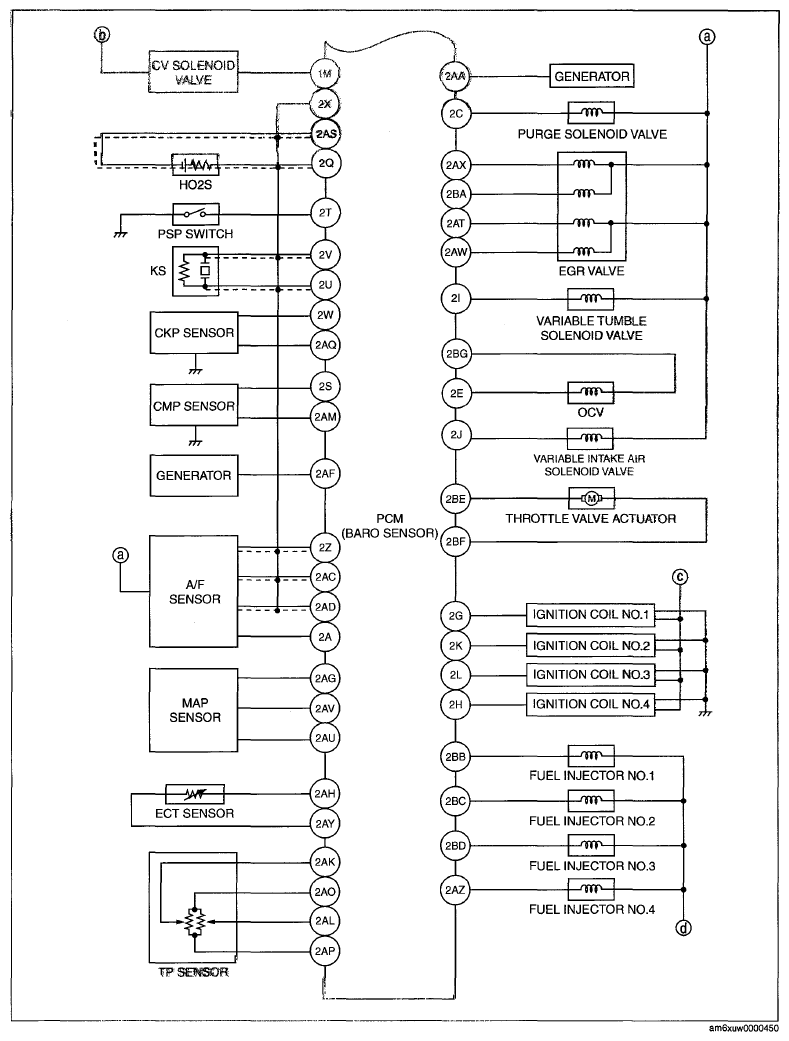

Fig 2: Control System Wiring Diagram (MZR 2.5; 2 Of 2)
G07620701Courtesy of MAZDA MOTORS CORP.
