MX-5 Miata Club, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Wiring Diagram
Control System Wiring Diagram

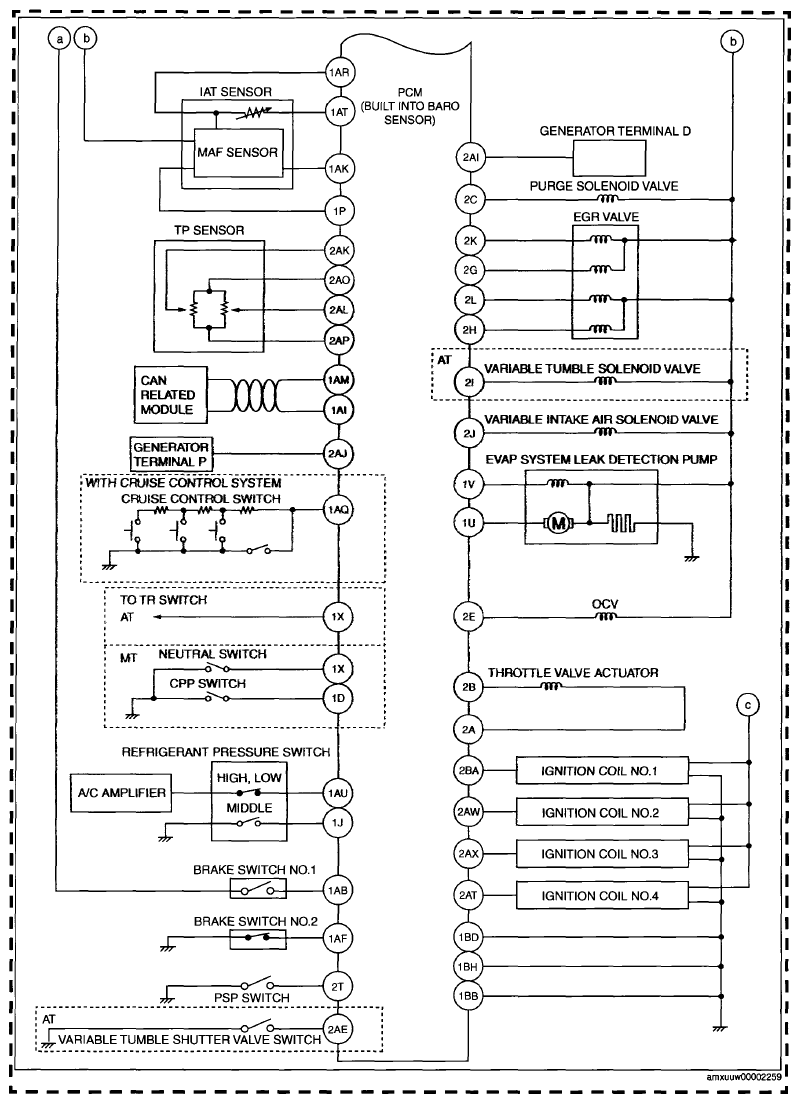

Fig 1: Control System Wiring Diagram - LF (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

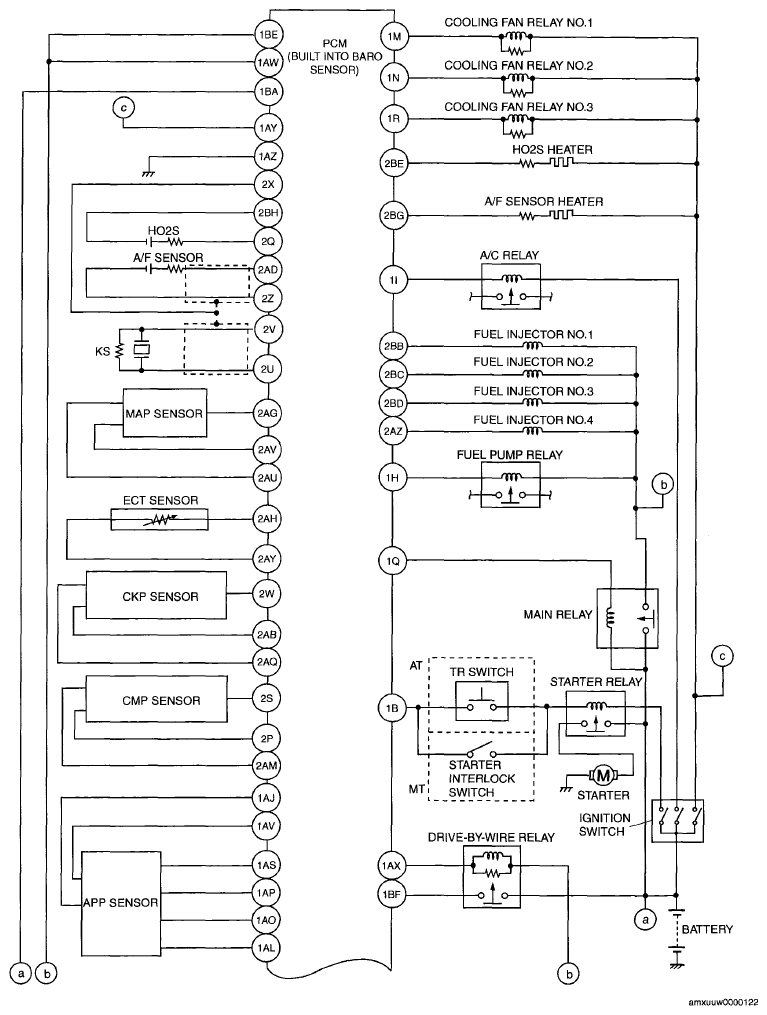

Fig 2: Control System Wiring Diagram - LF (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
