Resistance Inspection

Measure the resistance of the spark plug using a tester as shown in the figure.
- If not within specification, replace the spark plug.
Spark plug resistance [25°C {77 °F}]

3.0-7.5 kilohms

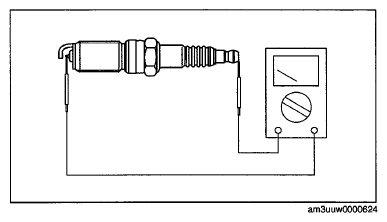

Fig 1: Measuring Resistance Of Spark Plug Using Tester
Courtesy of MAZDA MOTORS CORP.
