Camshaft Position (CMP) Sensor Removal/Installation

CAUTION:
  • When replacing the CMP sensor, make sure there is no foreign material on it such as metal shavings. If it is installed with foreign material, the sensor output signal will malfunction resulting from fluctuation in magnetic flux and cause a deterioration in engine control.
  1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
  2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
  3. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  4. Disconnect the CMP sensor connector.
  5. Remove the CMP sensor.

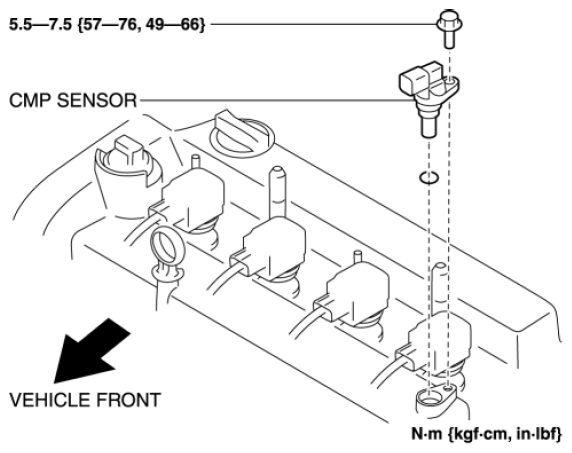

    Fig 1: CMP Sensor With Torque Specifications
    G08150344Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
