CMP signal

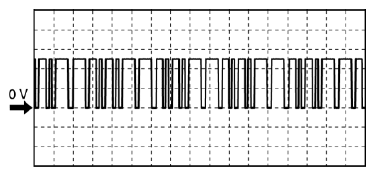

Fig 1: CMP Voltage Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2S(+) - body ground (-)

  Oscilloscope setting

• 5 V/DIV (Y), 20 ms/DIV (X), DC range

  Vehicle condition

• idle (after warm up)
