OCV control signal

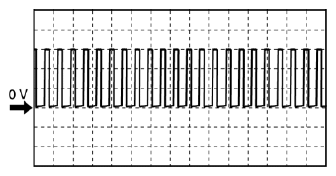

Fig 1: OCV Control Signal Voltage Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2E(+) - body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 10 ms/DIV (X), DC range

  Vehicle condition

• Racing
