Purge control

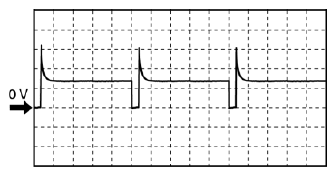

Fig 1: Purge Control Voltage Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1BA(+) - body ground(-)

  Oscilloscope setting

• 10 V/DIV (Y), 20 ms/DIV (X), DC range

  Vehicle condition

• idle (after warm up)
