Mazda
>>
2015
>>
CX-5 Touring, AWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Control System Diagram
Control System Diagram

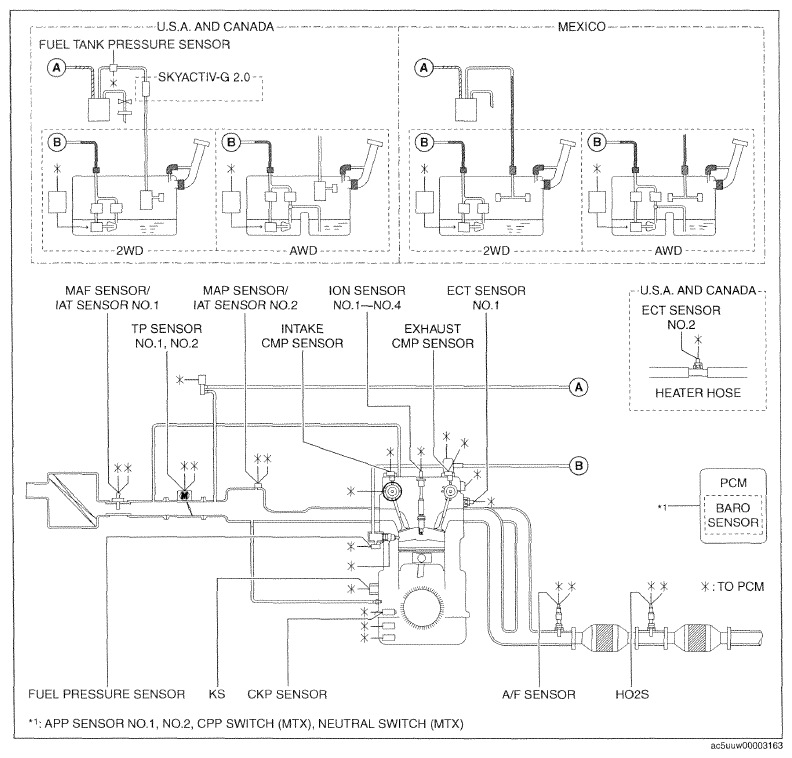

Fig 1: Control - System Diagram (Skyactiv-G 2.0, Skyactiv-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
